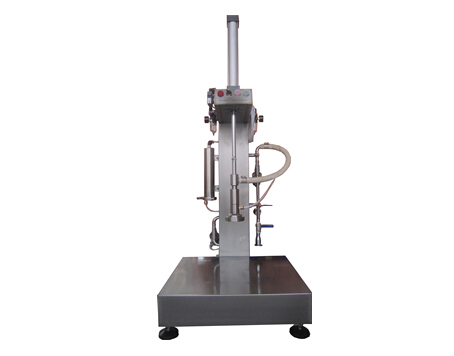

Single Station Beer Keg Filling Machine
Main Technical Parameters
Equipment Outer Dimensions 600*850*1550mm
Net Weight 85KG
Production Capacity 30-40 kegs/H
Filling Method Keg Topside Up
Applicable Kegs Keg with Diameter 250-500mm, Height 360-600mm
Power Supply Voltage AC 220V 50HZ（customized）
Main function and feature
1、All procedures are thoroughly controlled by SIEMENS programmable controller. All parameters (time values) can be adjusted without stopping the machine.
2. Pressure maintaining system performance is stable and reliable, to make sure the lowest beer loss compared to other similar products.
3. Could fill the kegs with different volume directly, and do not need to adjust any parameter

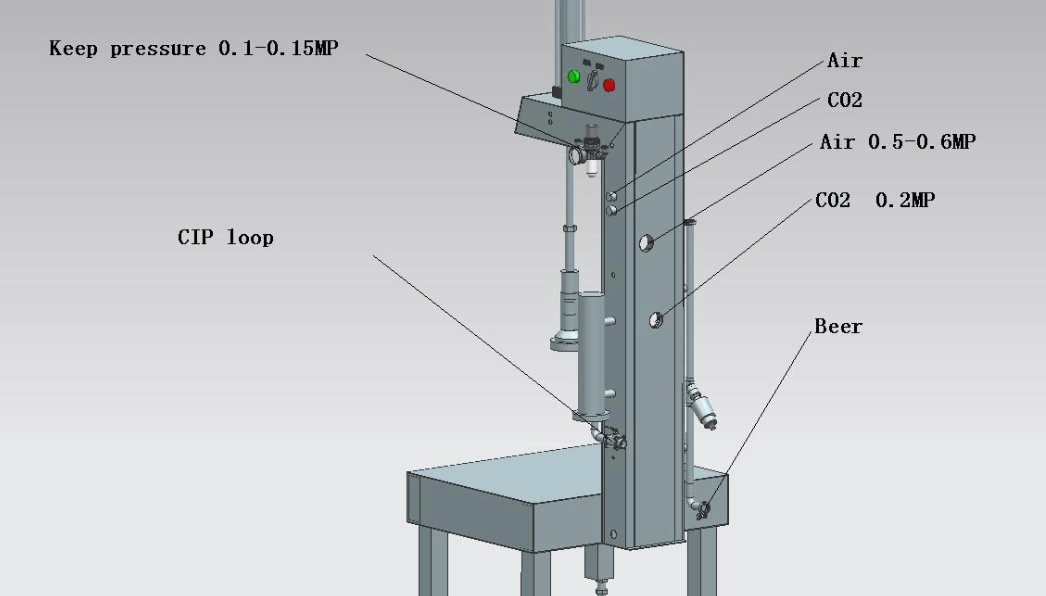

4. Equipment with CIP circumfluence pipe, very easy operation.
Fix the keg ---Start -- Co ₂ pressurization -Filling-- stop-- Take the keg
