Effective volume: 1000L;
Total volume: 1250L(25% head space)
Inner–jacket (SUS304), TH=3.0mm; Outer-jacket: 2.0mm;
Insulation: PU-thickness: 100mm.

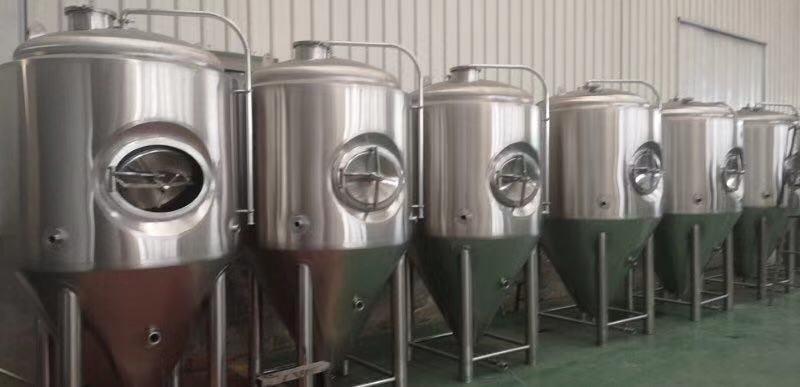

60degree cone; 2 zone dimpled jacket on bottom and side;
Cooling media: glycol water or alcohol water.
Stringent jacket leakage test by water and pressured gas.
360°coverage CIP spraying ball for cleaning.
Full sanitary sample valve;
PT100 Temp. sensor for high accuracy temperature control;
100% TIG welded joints;
Mirror polishing to 0.4μm without dead corner.
Design pressure 0.4MPa; Working pressure 0.2Mpa
Side shadowless manway 530*430mm
Rotation racking arm;
Dry hops adding port 219MM
Complete valves, fittings and all parts
1. Construction by highquality SUS 304 food grade stainless steel, all pipes are sus304;
2. All tanks will be tested and detected in the NDT room after finished, to ensure no leakage.
3. All jackets will do water pressure testing, testing pressure: 0.4Mpa, working pressure:0.15Mpa;
4. All tanks will be pressure protection 48hours before leaving from factory;
5. All the welding done by using water to protect the inner tank smooth and jackets uniform.
6. All the welds are TIG full welded, and acid pickled and passivated.
7. All tanks are mirror polishing inside, all ports are recessed type.
8. EPDM gasket
