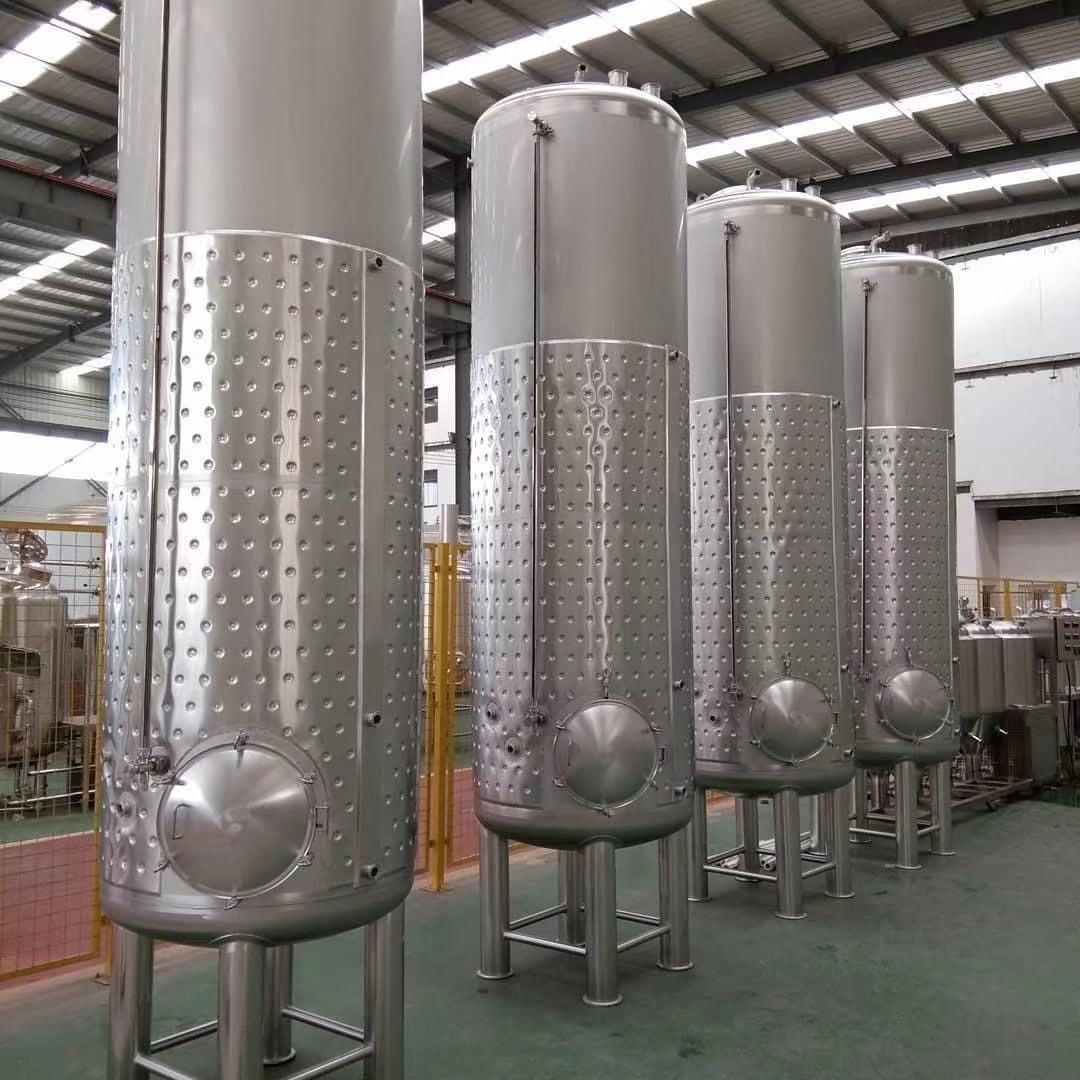

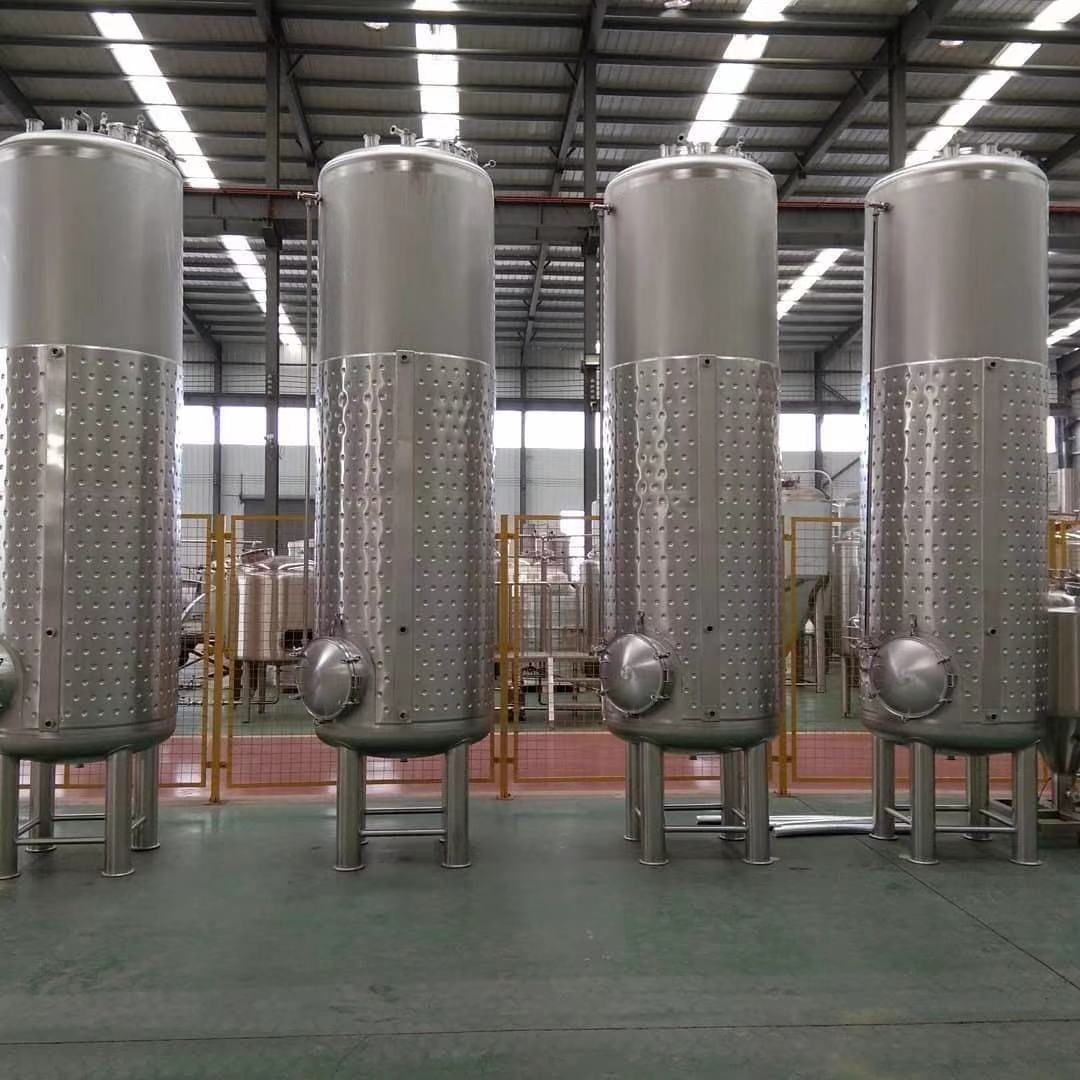

These Vinegar storage tanks or say Fermenters is normally used for Vinagar, wine,apple cider series of liquid stograge. We can both supply single tanks or "completed system", including pre-material processing equipment, fermenters, storage tanks, freezing tank, pumps, filters, filling machines, which can be used for juice, cold press coffee, cider and kombucha brewing.
Effective volume: 1500L;Gross volume: 2300L ;
Material: SS304;
Inner–shell (SUS304 full welded), TH=3.0mm;
Outer-jacket(SUS304), TH=2.0mm;
Top and bottom are elliptical head standard to or equal to GB-T 25198-2010.
Dimple jacket according to drawing
Stringent jacket leakage test by water and pressured gas;
360°coverage CIP spraying ball for cleaning;
Top manhole: 400mm manhole with 6” safety sight glass (design pressure 2.5-3 bar)
Bottom manhole: 400mm manhole without SS glass (design pressure 2.5-3 bar)
Operation design pressure : 2.5-3 bar
Side connector with ferrule gas approximately 21mm
Temperature gauge x2 : glass thermometer , Temp range 0-160 C or 0-200 C
Pressure gauge x1 : show in psi/bar
Safety valve with manual release bar: blow pressure 25 psi
All connector/ferrule come with matched clamps and pipe
Water level liquidometer with transparent glass
100% TIG full welded joints;
All pipes and holes as drawing, the end socket and clamp is 50.5mm
All pipe and ferrule to connect body : ISO 2037 standard
Production the same as drawings
