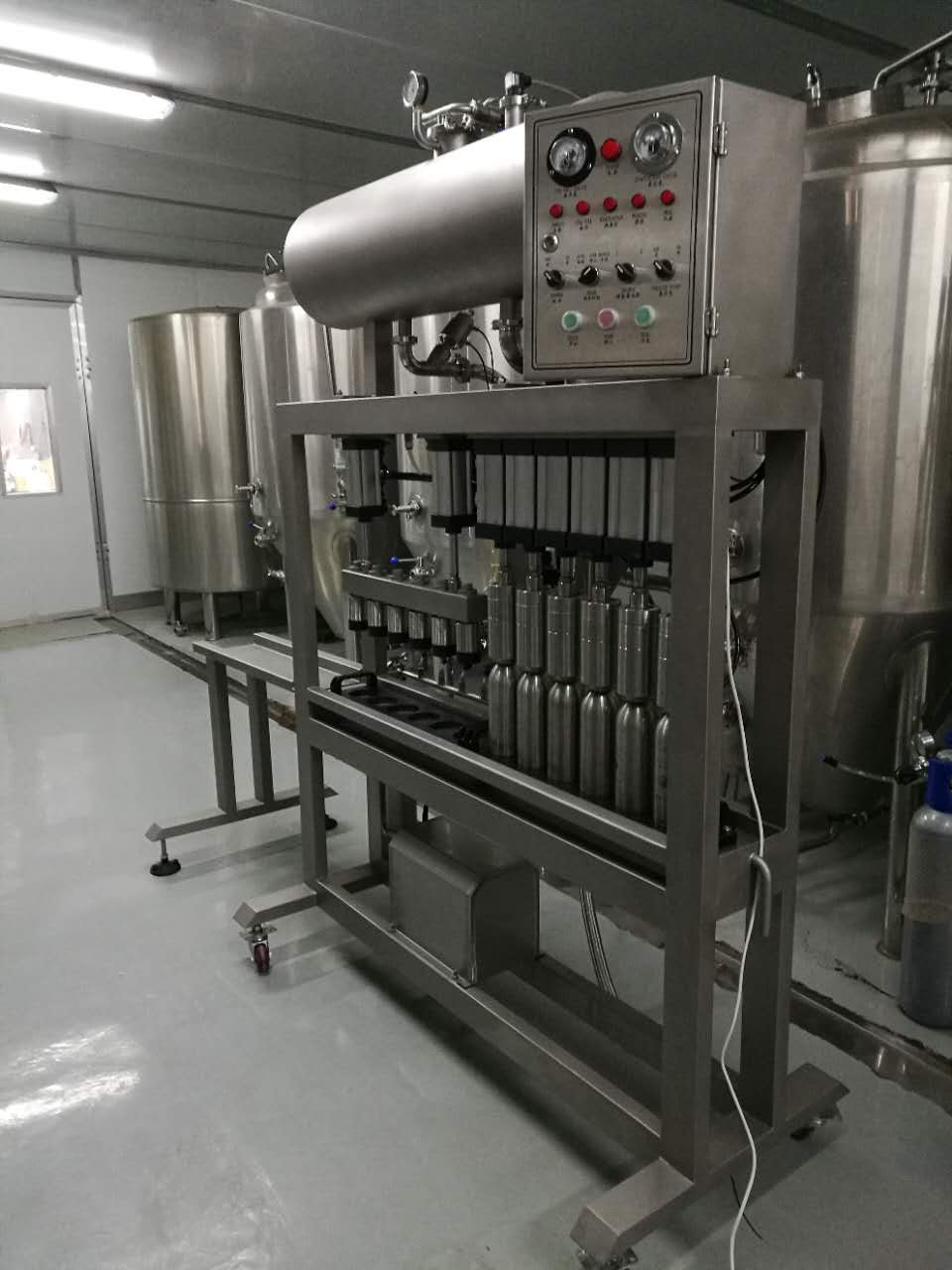

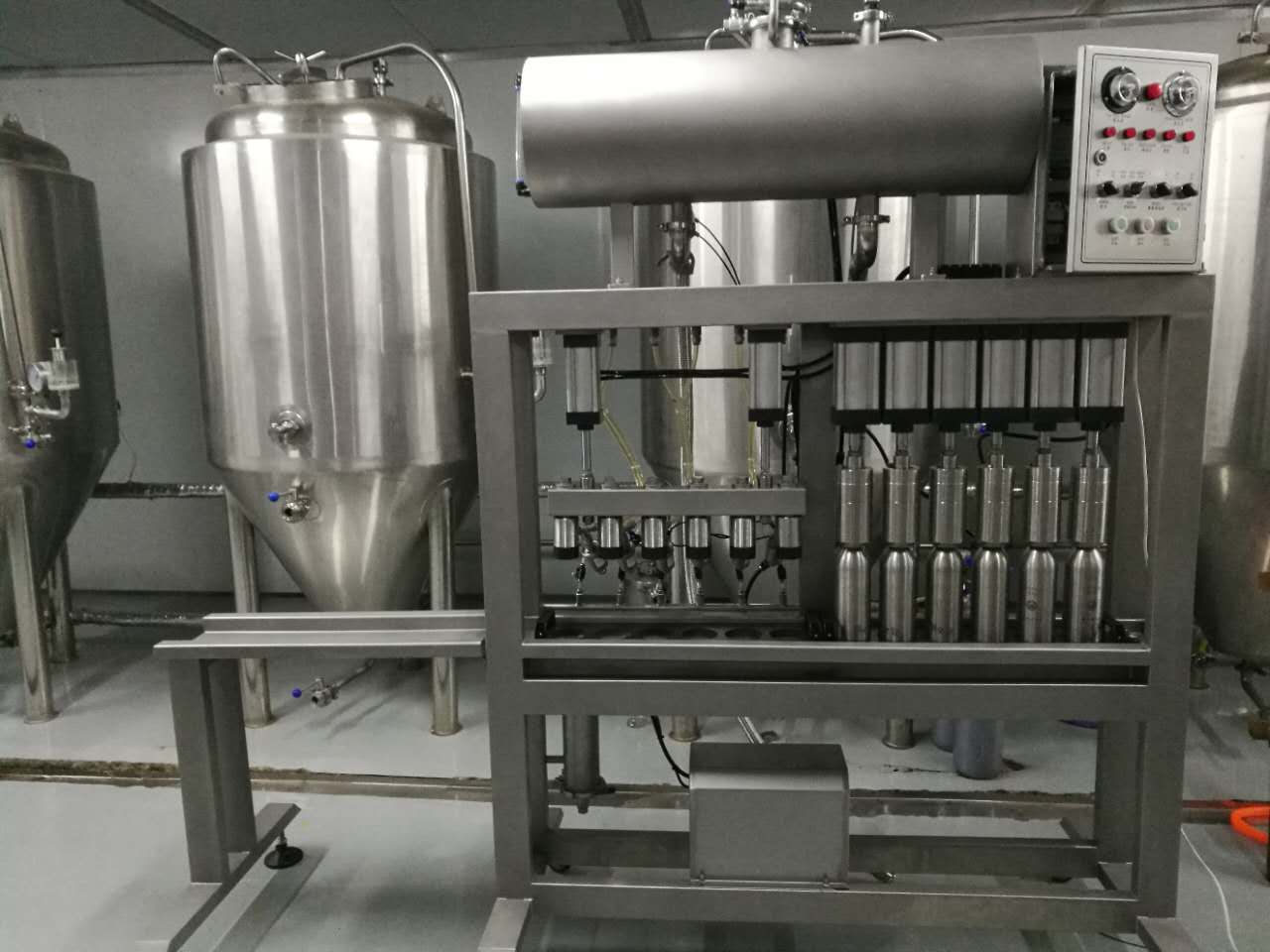

Bottling machines for brewery filling
This designed bottle filling equipment is especially designed for microbrewery from 100L-1000L, the filling capacity is from 100b/h to 600b/h, there are 2 heads, 4 heads, 6 heads, 8 heads and 10 heads for your chooing.
Main Technical Parameters
Equipment Outer Dimensions 1800*800*2200mm
Net Weight 300KG
Production Capacity 300-600 bottles/H
Applicable Bottles 330ml-2L bottles
Working Stations 4-10
Power Supply Voltage AC 220V 50HZ (customized)
Main function and feature
1、Automatic control by PLC, all parameters can be adjusted.
2、Filling and capping process can be finished in this machine at one time.
3、With CO2 pressurization and could add vacucum.
4、Adopt isobar filling method and with unique pressure maintaining system，performance stable and reliable, beer loss minimum.
5、With pressure compensator, to guarantee a stable filling process.
6、Could product the glass bottle or Stainless Steel bottle manual filling and capping AIO machine (user-selectable) .
Working process
Fix the bottles--co2 purge---- isobaric——filling-- pressure stabilization--pressure relief--stop--move the bottles to the capping stations--capping--take the bottle
