Basic Introduction:

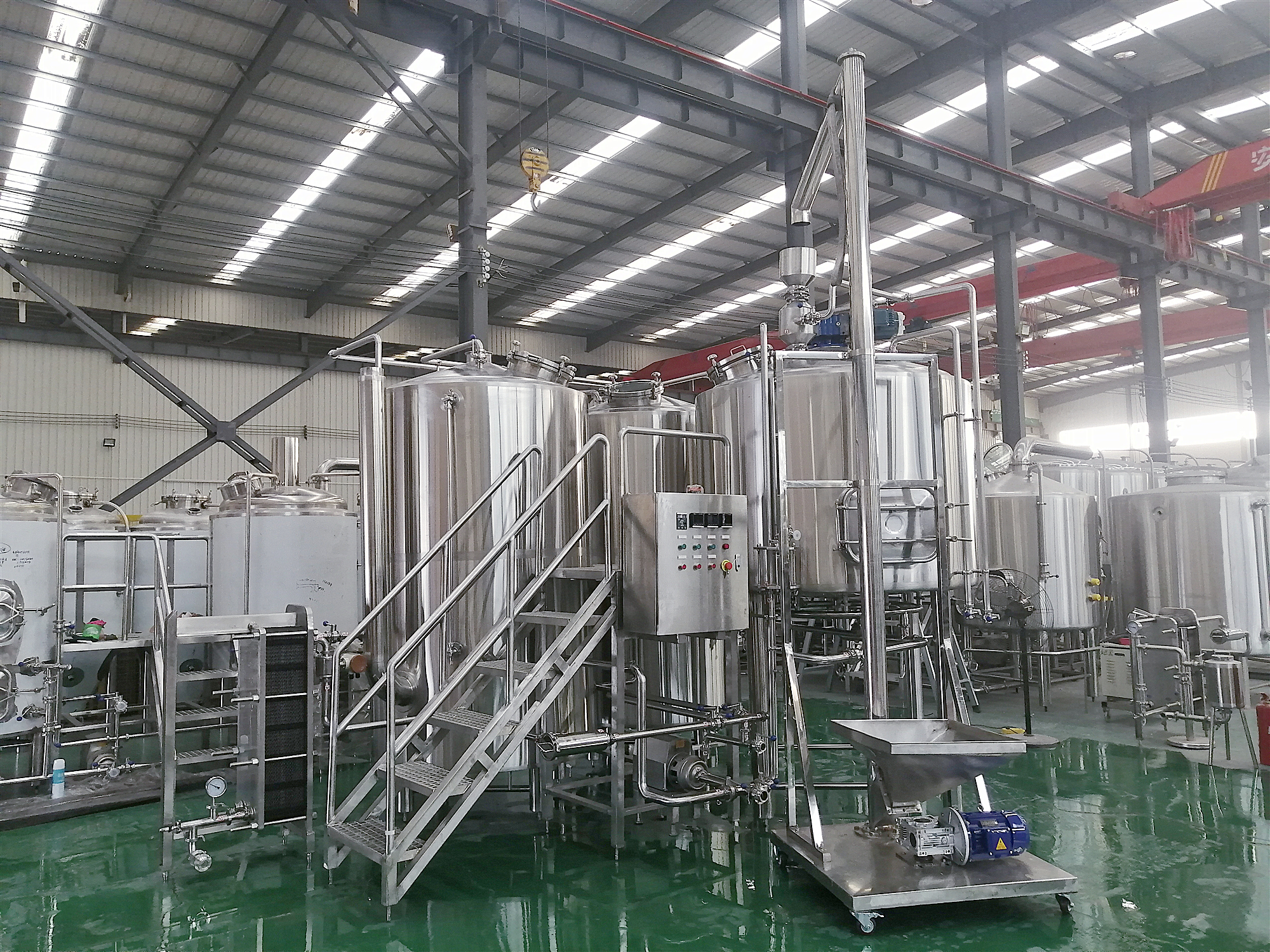

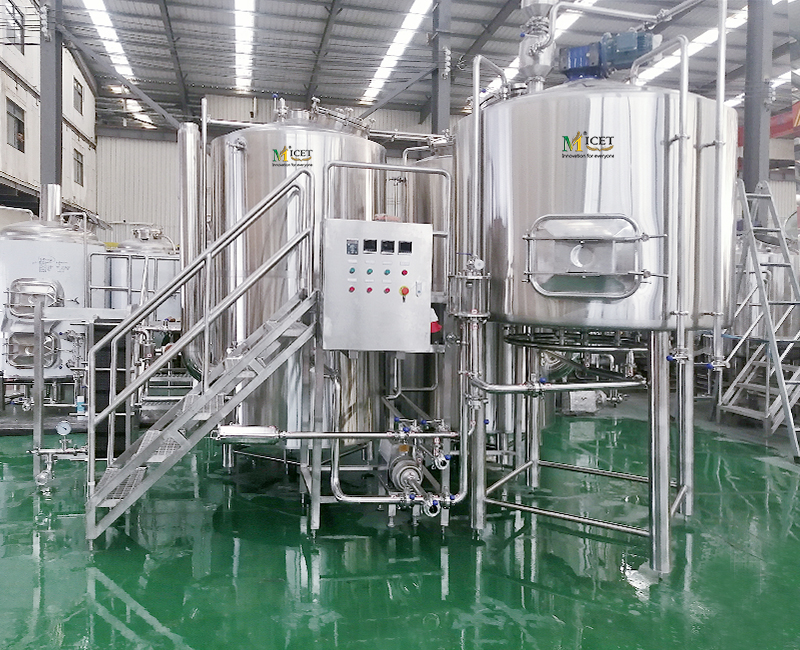

This semmi- automatic beer micro brewery is designed just for the Argentina brewing market, with grist hydrator, gearbox, grant, skid mounted platform, two pumps, multi-positioned butterfly valves, which is always Micet's highest standard for North American market. We are specialized in manufacturing different types of industrial breweries and microbreweries to different clients in the world. The full line products including milling, mashing, fermentation, cooling, filtration, filling and other related processes. We focus on each brewing system to stringent testing procedures before publishing them in the market.
Brewery Main tank: Mash/lauter tun, kettle/whirlpool tank
Standard design: 3HL,5HL,8HL,10HL,15HL,20HL, 30HL or customize
Brewhouse configuration:
Mash/lauter tun:
Effective volume: 14HL, total volume: 16.5HL;
Inner-Jacket (SUS304), TH=:3.0mm;
External-Jacket (SUS304), TH=2.0mm;
External-Jacket (SUS304), TH=2.0mm;
Insulation layer: rock wool thickness: 80mm;
Lauter tank equipped with plow knife, scpraing plate, raker motor;
Top manhole: round glass manhole;
Side grain outdoor with grain chute;
Side grain outdoor with grain chute;
Easy-clean and detachable Sparging sprayring
Laser cutting T-wires false bottom (filter);
Filter way: Suction filtration by speed controlled pump;
170 degree flat base with wort collection tube
Bottoom with screws and underflushing system
Bottoom with screws and underflushing system
Equipped with balance tank and grain out dustpan;
360° coverage CIP spraying ball; Temperature measurement way: PT100
4 completely SUS304 heavy duty legs with leveling pads
Kettle/whirlpool tank:
Effective volume: 14HL, total volume: 19.HL;
Inner-Jacket (SUS304), TH=:3.0mm;
External-Jacket (SUS304), TH=2.0mm;
External-Jacket (SUS304), TH=2.0mm;
Insulation layer: rock wool thickness: 80mm;
Top manhole: round glass manhole;
360° coverage CIP spraying ball;
Temperature measurement way: PT100
Temperature measurement way: PT100
4 completely SUS304 heavy duty legs with leveling pads
Direct fired heating through gas burner and firebox
Steam vent by steam condenser with spray nozzles
Sanitary leveling sight glass at the back of kettle;
Tangential whirlpool
1400L Hot liquor tank
Direct fired heating through gas burner and firebox
Sanitary centrifugal pump for hot water transfer
Level gauge
1400L Hot liquor tank
Direct fired heating through gas burner and firebox
Sanitary centrifugal pump for hot water transfer
Level gauge
