Introduction:
This system is a 2 tank 2 vessel brewhouse designed for North America brewing market, can be used for microbrewery, beer brewery factory brewing for different sized flavor beers. MICET micro breweries are installing at the customer's company turn-key. To release a less than 2 bbl of beer per day is unprofitable, so the minimum performance of our equipment is 2 bbl.

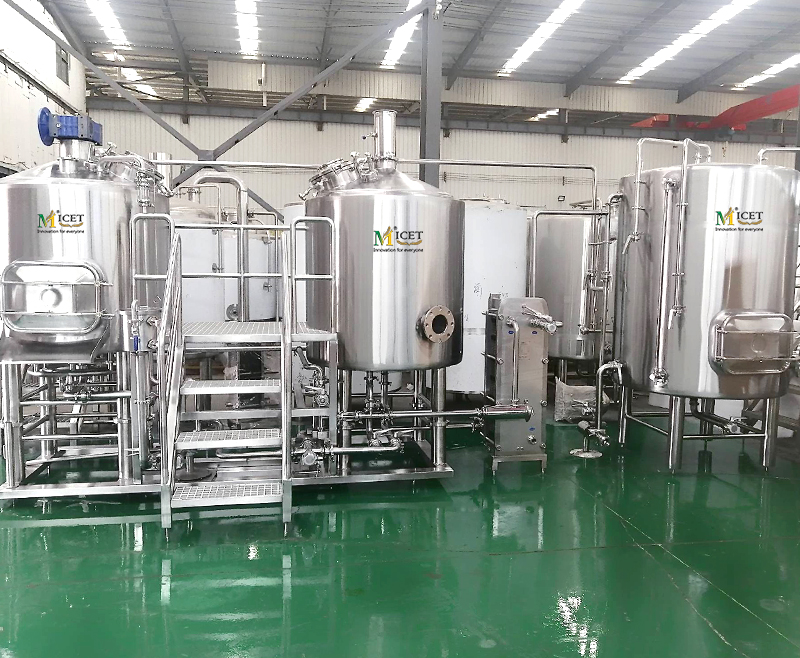

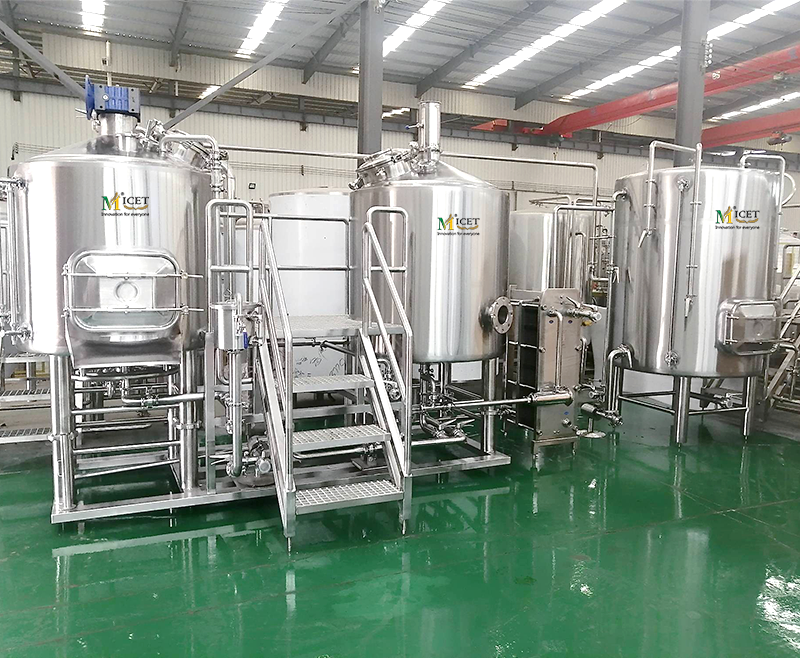

Microbrewery skid-mounted brewhouse combination:
5bbl Mash/lauter tun, 5bbl kettle/whirlpool tank, 6m2 heat exchanger
Detailed configuration:
Mash/lauter tun:
Material: SUS 304;
Inner-Jacket TH=:3.0mm; External-Jacket TH=2.0mm;
Insulation layer: PU-thickness: 80mm;
Lauter tank equipped with plow knife (raker knife with scraping plate); Raker motor;
Top manhole: round glass manhole; Side grain outdoor with grain chute;
Easy-clean and detachable Sparging sprayring
Laser cutting T-wires false bottom (filter);
Filter way: Suction filtration by speed controlled pump;
Flat base, with wort collection tube and underflush system
Equipped with balance tank and grain out dustpan;
360° coverage CIP spraying ball;
Temperature measurement way: PT100
4 completely SUS304 heavy duty legs with leveling pads
Steam jacketed heating 2 zone
Kettle/whirlpool tank:
Material: SUS 304;
Inner-Jacket TH=:3.0mm; External-Jacket TH=2.0mm;
Insulation layer: Rock wool-thickness: 80mm;
Top manhole: round glass manhole 400mm;
360° coverage CIP spraying ball;
Temperature measurement way: PT100
4 completely SUS304 heavy duty legs with leveling pads
Heating way: Steam heating;
Steam vent by steam condenser with spray nozzles
Sanitary leveling sight glass at the back of kettle;
Tangential whirlpool inlet
Optional configuration:
Heat exchanger: hunging typeNuanbao Brand
Paltform: Normal standard or water leaking type
Pumps ABB or JLEM
