Introduction:
Microbrewery or beer brewing equipment is typically applied to breweries that are much smaller than large-scale corporate breweries and are independently owned.
Such breweries are generally characterized by their emphasis on flavor and brewing process.
We offer a Microbrewery (mini brewery) with the productivity of 10HL to 35HL per brew.
The service includes: complete set of microbrewery equipment, installation, personnel training,etc.,
Microbrewery comes complete "turnkey" The performance of your Microbrewery (Brewery and mini brewery) can be easily expanded in the future.
Brewhouse combination: Mash/lauter tun, whirlpool tank/Kettle.
Specification
Capacity/Brew 10HL 12HL 15HL 20HL 25HL 30HL 35HL
Brews/Week 6～12 6～12 6～12 6～12 6～12 6～12 6～12
Capacity/Week 60～120HL 72~144HL 90~180HL 120~240HL 150~300HL 180~360HL 210~420HL
Electric Supply 3phase/380(220, 415,440)v/50 (60)Hz
Single Phase/ 220(110, 240v)/50(60)Hz
Heating Source Steam/Directly Fired
Location needed >70M2 >80M2 >100M2 >120M2 >140M2 >150M2 >180M2
Brewmaster 1 1 1 2 2 3 3
Note: 1HL =1000Liter
Configuration
1. Malt Milling Unit
Particle adjustable rolling crusher
Flexible or steel auger for optional

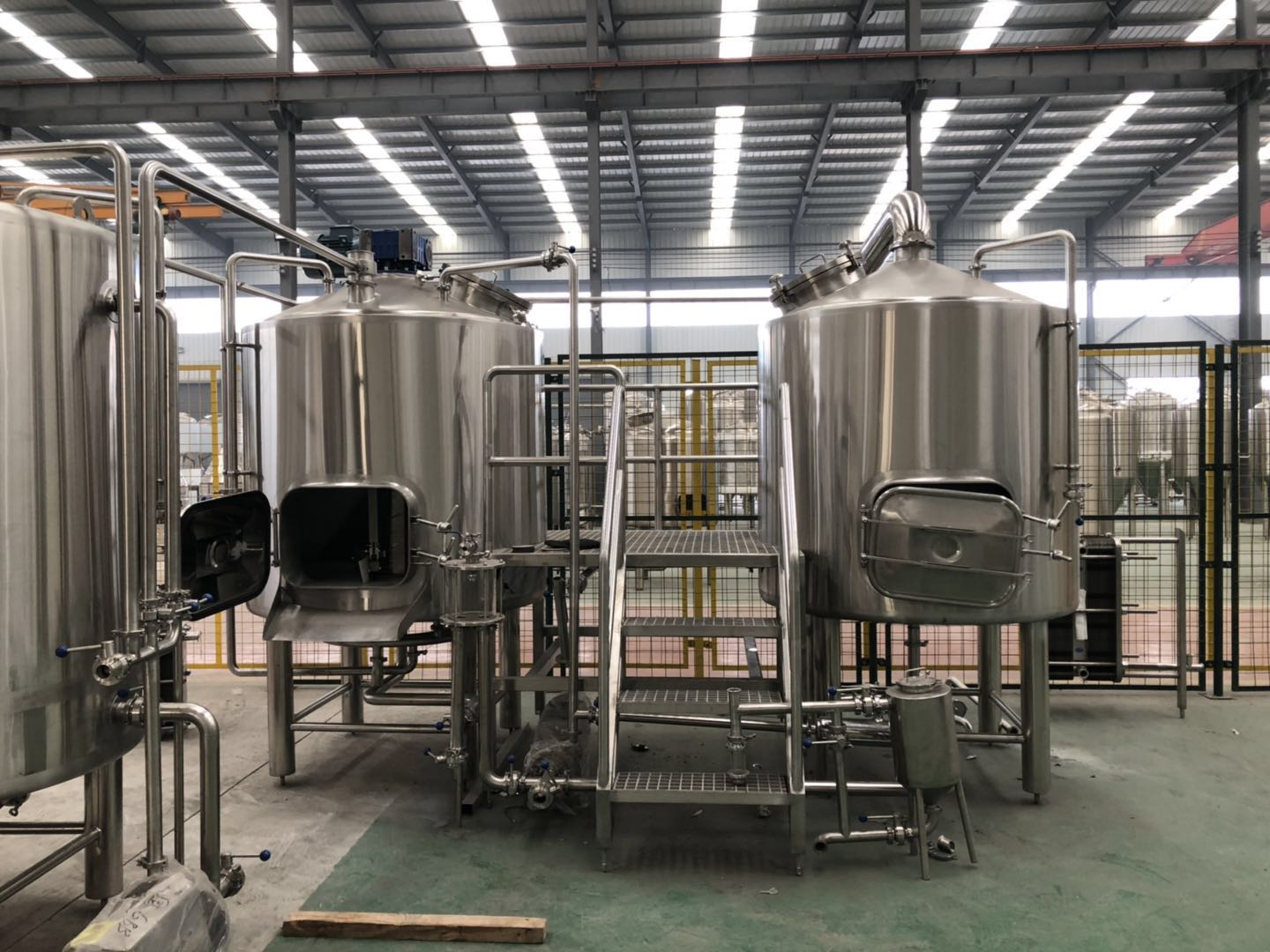

2. 10HL Brewhouse configuration
Every Weld Blended and Finished to a Smooth Sanitary Finish
Stainless steel brewing platform & integrated stairs or ladder with adjustable footpads
Stainless steel hard piping and brewhouse manifold with butterfly valves, Sight glass
Stainless steel steam condensation stack with spraying nozzles.
Sanitary centrifugal pump for mash, wort or hot water transfer
Fixed speed or various speed agitator and rake for efficient lautering and spend grain removing
High Efficiency multi-pass plate type heat exchanger with thermometer and oxygenate aeration stone port (stone not included)
Control panel in stainless steel with digital control
V-Wire False Floor Included in Mash/Lauter Tun – virtually guarantees consistent wort flow
Compact- Space Saving and flexible Brewing Configurations
Eelectric heating through electric flange
Standard Thermometers and Thermawell Adapters
VFD controlling for pumps and motors
Level gauge
3.10hl hot liquor tank
Eelectric heating through electric flange
Sanitary centrifugal pump for hot water transfer
Level gauge
3.10hl hot liquor tank
Eelectric heating through electric flange
Sanitary centrifugal pump for hot water transfer
Level gauge

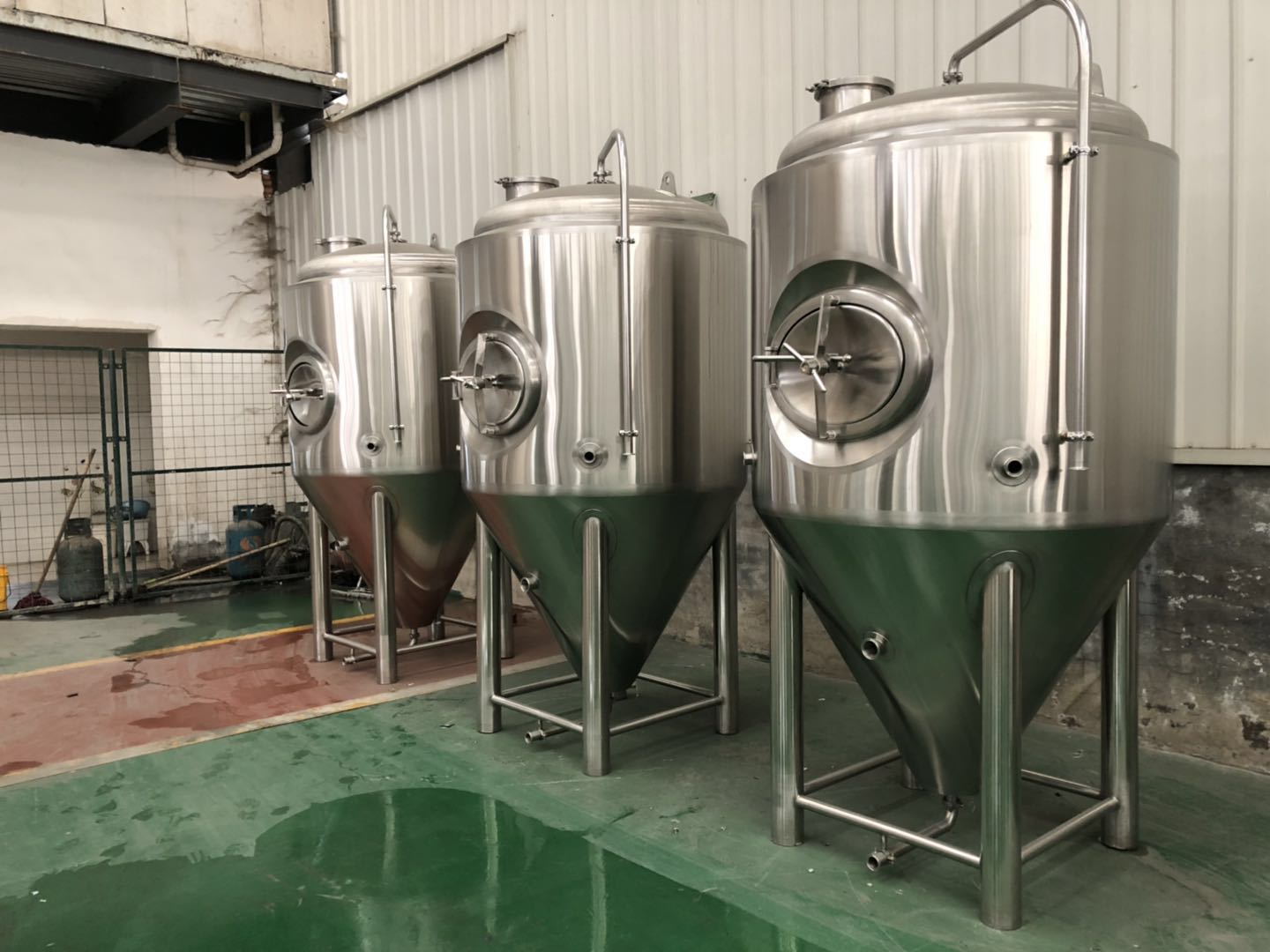

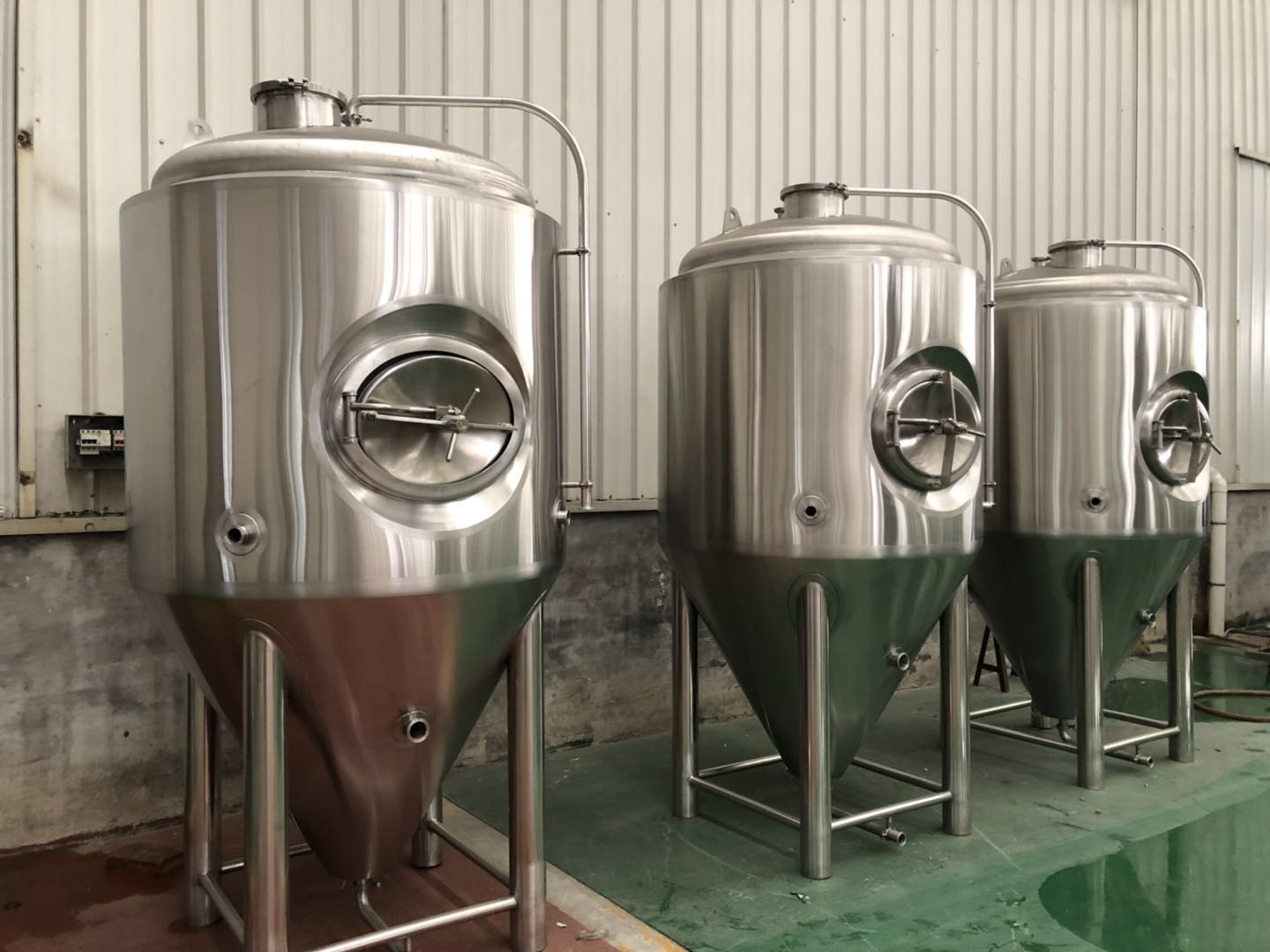

4. 3*10hl Fermentation unitank Unit
Standard stainless steel conical cylindrical fermentation tanks
Single size as brewhouse is common used in restaurant
Tanks quantity is exactly calculated by fermentation cycle for various beers
All manhole, valves, pressure gauges, fittings etc are included
5. Cooling Unit
Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing
Efficiency chillers or refrigerators with fryonto supply cooling energy
Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger
All pipes, fitting, insulation materials are include
For the completed micro brewery also includes brewery CIP cleaning system, semi-automatic brewery controlling system, beer dispensing equipment, including kegging, botting or canning.
