Introduction:

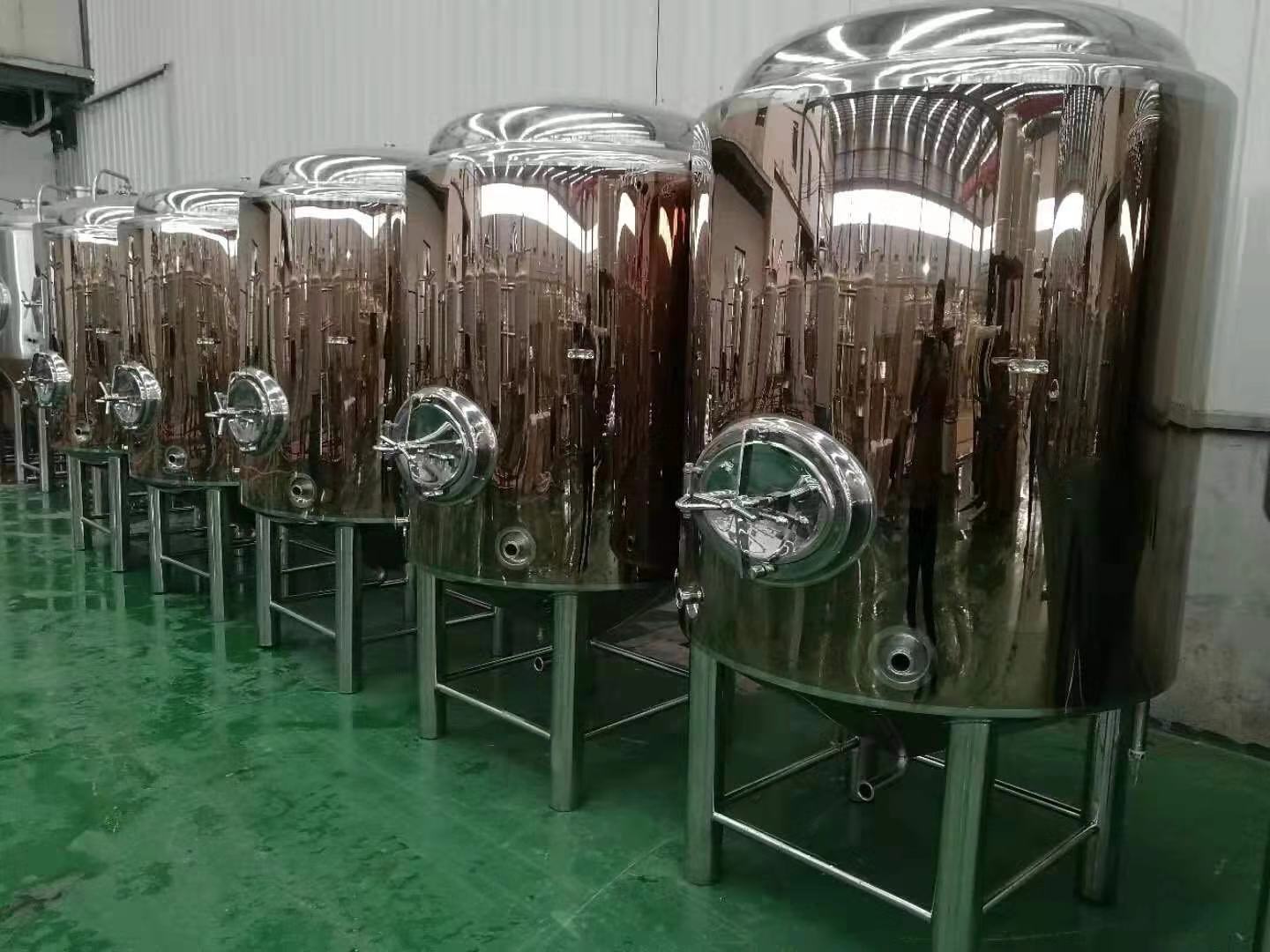

1000L Beer bright tanks are designed and shipped to India, bright tanks are often used for beer maturation or beer conditioning for microbrewery system, bright tank is also called BBT, serving tanks, storage tanks or clear beer tanks, vertical bright beer tanks; These tanks are used for the storage of the clear beer before being served or packaged. Depending on their application the beer serving tanks can be glycol jacketed or can be single wall in a cold room.
BBT Configuration:
Effective volume: 1000L;Gross volume: 1250L;
Inner–jacket (SUS304), TH=3.0mm;
Outer-jacket(SUS304), TH=2.0mm;
Dish head(SUS304), TH=2.0mm;
Insulation: PU-thickness:80mm;
Dish bottom, dimpled cooling jacket on bottom and side;
Cooling media: glycol water or alcohol water;
Stringent jacket leakage test by water and pressured gas;
360°coverage CIP spraying ball for cleaning;
PT100Temp. sensor for high accuracy temperature control;
Design pressure 0.4MPa; Working pressure 0.2Mpa
Side shadowless manway 340*440mm
PRV Valve on top prv safety;Sanitary sample valve;
4''Dry hops adding port; Carbonation stone for co2;
Spunding valve for air pressure release;
100% TIG full welded joints;
nterior overall polishing to 0.4μm without dead corner.
20.4pcs completely SUS304 heavy duty legs with leveling pad.
