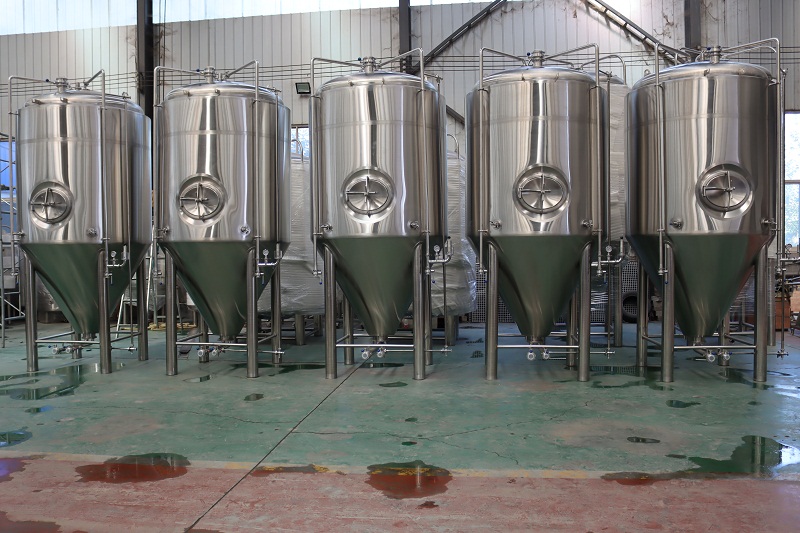

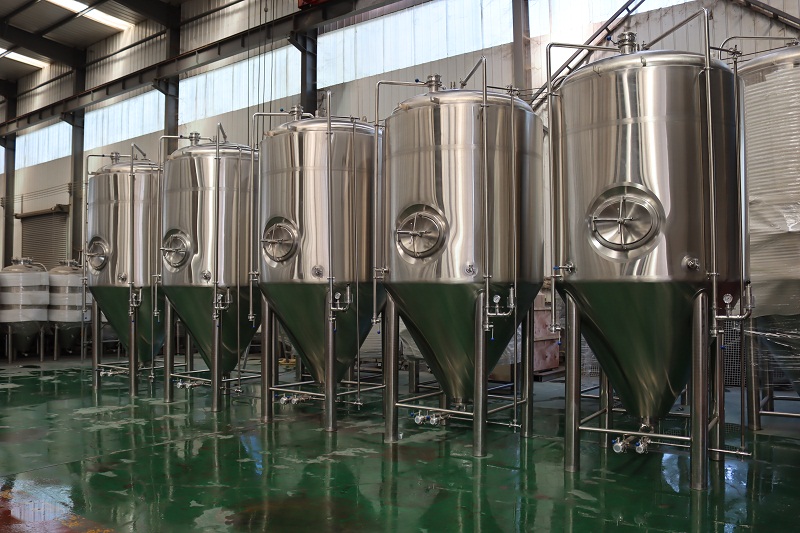

3800L Double Wall Conical Call Fermenters

Descriptions

Fermenter is also called CCT (Cylindrical Conical Tank), FV (Fermentation Vessel), primary fermentor or unitank as they are used both for fermenting and lagering. Fermenting is the process during which the yeast transforms the wort into beer. Lagerings takes place after fermenting and is the time given to the beer to stabilize and age after fermenting.

This is special design for our Russia client. We can make customized design for you according to your requirements.

Standard Configuration

Function：Wort Fermentation or maturation
Tank Capacity: 3800L (+25% Headspace minimum)
Dimension: Φ1760mmx3500mm
Interior Shell: SUS304 full welded; TH=3mm
Exterior Shell:SUS304 full welded; TH=2mm
100% TIG welding with pure argon gas shield
Interior Finish: Overall polishing to 0.4~0.6 μm without dead corner
Insulation: Polyurethane; TH=100mm
Glycol Jacket: Dimpled plate on cone and side
Stringent tank leakage test by water and pressured gas
Stringent Jacket leakage test by water and pressured gas
Dished head and 60 degree cone bottom
Sanitary side mounted manway
CIP arm with 360° coverage CIP spraying ball
CO2 blow-off arm with butterfly valve
Full sanitary sampling valve
Mechanical relief valve 2 bar on CIP arm
Shockproof pressure gauge on CIP arm
Rotating racking arm and port on cone with butterfly valve
Tri clamp discharge arm with butterfly valve
Thermowell for high accuracy temperature sensor
4pcs completely SUS304 heavy duty legs with leveling pad and legs support
Complete valves, fittings and all parts
Dry hopping port with solid end cap
Level tube for special request
Carbonation port and stone for special request.
