10BBL Complete Brewery Equipment
Introduction
Microbrewery is typically applied to breweries that are much smaller than large-scale corporate breweries and are independently owned. We offer a Microbrewery (mini brewery) with the productivity of 1000L (10 hl) to 5000L (50hl) per brew. The service includes: complete set of microbrewery equipment, installation turn-key, recipes and technology of branded beers, staff training and more. Microbrewery comes complete "turnkey" The performance of your Microbrewery (Brewery and mini brewery), if necessary, can be increased in the future. This complete 10BBL equipment capacity is very suitable and good for brewery starting, and mostly for USA market.Specifications
| Output/Brew | 10BBL |
| Brew/Week | 6~12 |
| Output/Week | 90~180BBL |
| Electric Supply |
3phase/380(220, 415,440…)v/50 (60)Hz Single Phase/ 220(110, 240…)v/50(60)Hz |
| Heating Source | Steam/Directly Fired |
| Area Request | >100M2 |
| Brewmaster | 1 |
Note: 1hl=100liter; 1Gallon=3.7854liter; 1Barrel (BBL) =117Liter;
Detailed configurations:
1. Malt Milling Unit
Particle adjustable rolling miller 500kg/h
Flexible or steel auger for optional
A grist case under the mashtun

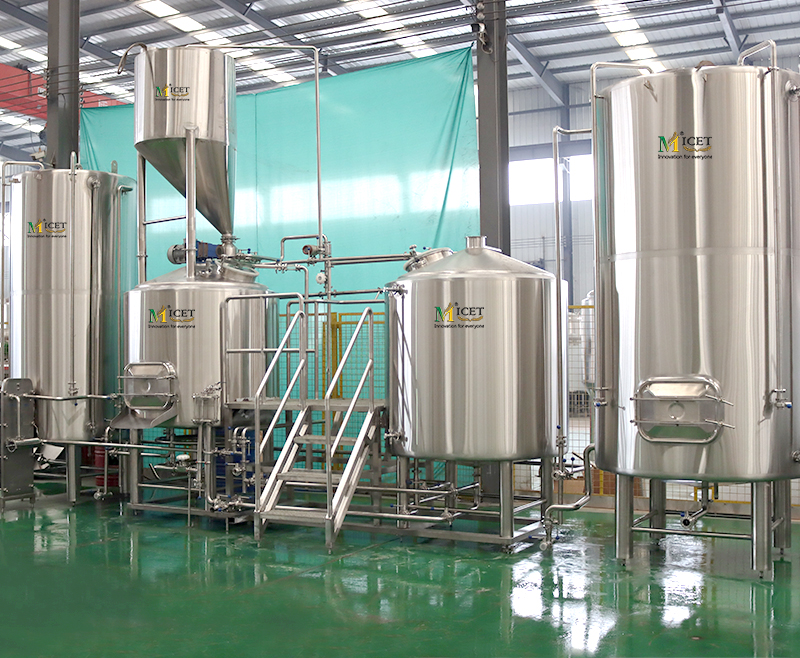

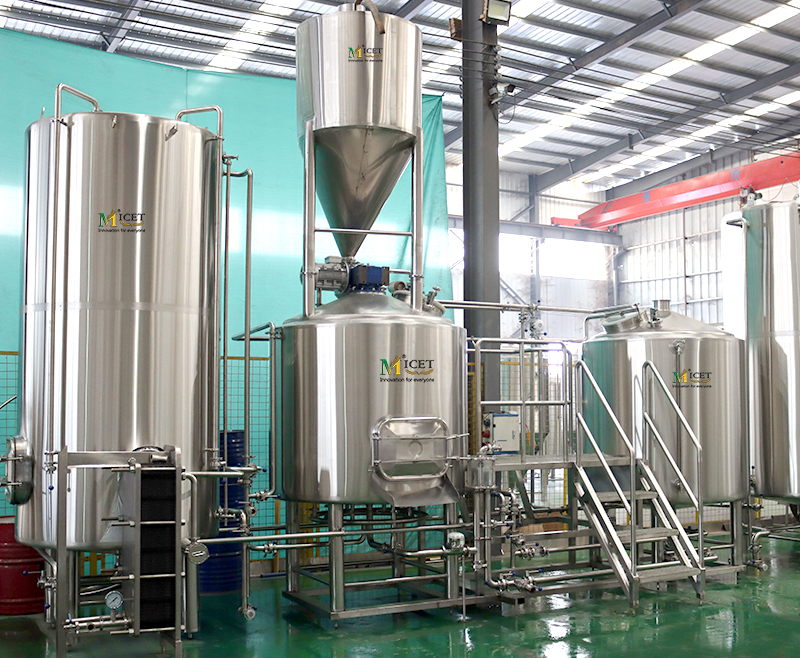

2.10BBL Brewhouse Unit
Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination, mostly are 2 Vessel with a seperated HLT, and 3 Vessel;A grist case under the mashtun
2.10BBL Brewhouse Unit
Hot water tank and cold water tank for optional in special combinations;
Infusion or decoction brewing methods are designed exactly;
Stainless steel are popular because of easy maintenance and clean, copper cladding for optional;
Steam heating with the steam boiler or Direct fire heating for options;
Two stages or single stage heat exchanger for wort cooling;
Completely stainless steel integrated work platform;
Sanitary and efficiency wort pump;
Control panel in stainless steel with digital control
All pipings and fittings;
3.20BBL hot liquor tank/cold water tank
Eelectric heating through electric flange;
Sanitary centrifugal pump for hot water transfer;
Level gauge;

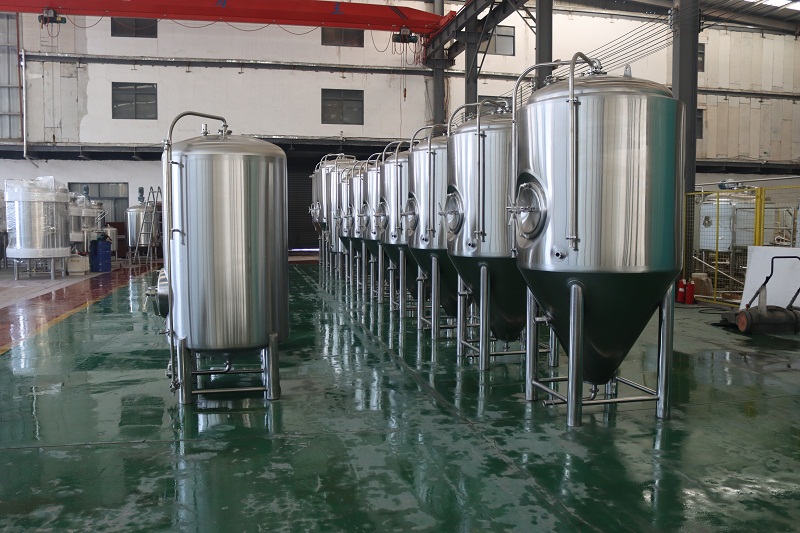

4.10 bbl or 20 bbl Fermentation 6-12units
Standard stainless steel conical cylindrical fermentation tanks;
Single size or double size as brewhouse is common used in microbreweries;
Tanks quantity is exactly calculated by fermentation cycle for various beers;
All manhole, valves, pressure gauges, fittings etc are included.

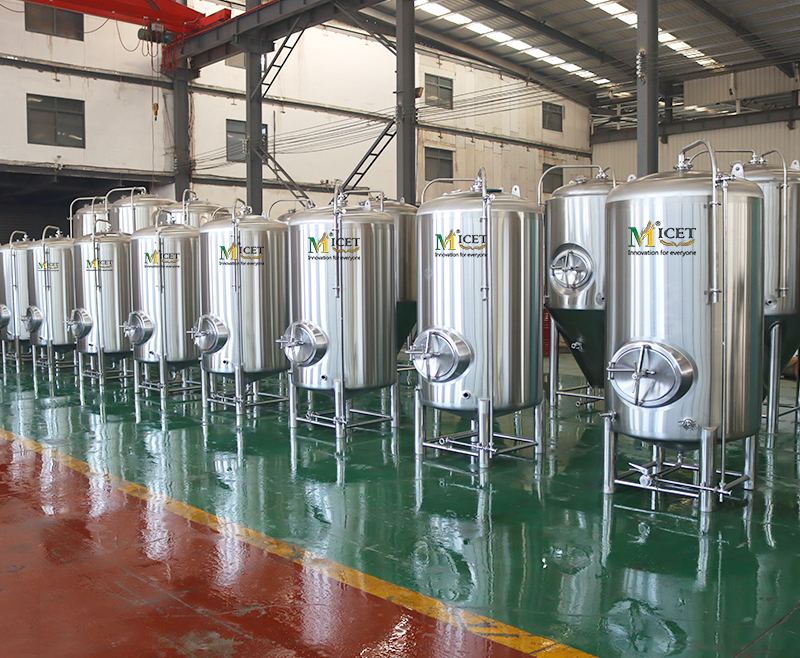

5.10 bbl or 20 bbl Bright Beer Tank 3-6units
Standard stainless steel bright tanks for beer maturation, conditioning, service, carbonation;4.10 bbl or 20 bbl Fermentation 6-12units
Standard stainless steel conical cylindrical fermentation tanks;
Single size or double size as brewhouse is common used in microbreweries;
Tanks quantity is exactly calculated by fermentation cycle for various beers;
All manhole, valves, pressure gauges, fittings etc are included.
5.10 bbl or 20 bbl Bright Beer Tank 3-6units
Single size or double size as fermenter is common used in restaurant or bar;
Tanks quantity is exactly calculated for various beers and the function;
All manhole, valves, stone, gauges, fittings etc are included;
6.Cooling Unit
Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing;
Efficiency chillers or refrigerators with fryon to supply cooling energy;
Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger;
All pipes, fitting, insulation materials are included;
7. Controlling Unit
Electrical controlling cabinet with temperature, on-off controlling for brewhouse;
Electrical controlling cabinet with temperature, on-off controlling for cooling parts;
Temperature controller, thermocouple, solenoid valves etc are included;
PLC with touch screen panel for special request;
For the completed micro brewery also includes brewery CIP cleaning system, semi-automatic brewery controlling system, beer dispensing equipment, including kegging, botting or canning.
Technical Notes:
All Construction is from SUS 304 food grade stainless steel, all pipes are SUS304
All signs & wording in English
All tanks to be supplied with Data Plates including Test Data & Serial Number
All tanks will be tested and inspected in the NDT room after construction & Quality Control Checks
All jackets will be tested using water pressure testing, testing pressure: 0.4Mpa (4 Bar) & working pressure:0.2Mpa (2Bar)
All tanks will be pressure tested for 48hours before leaving the MICET factory;
All the welds are full TIG welded by water spray method to ensure uniform weld pattern with full pickling & passivation
All tanks are mirror polishing inside, to be Ra 0.4um.
All Gaskets are manufactured with EPDM
