Introduction:
This system is a 1500L 2 vessel with a separate HLT brewhouse design, can be used for microbrewery, beer factory brewing for different sized flavor beers. This combination including mash/lauter tank, Kettle/Whirlpool tank, and HLT. This design is normally used for America and Europe market.
Specification
Capacity/Brew 10BBL 1000L, 12BBL 1500L, 15BBL 2000L, 20BBL 25BBL 3000L, 30BBL 35BBL
Brews/Week 6～12 6～12 6～12 6～12 6～12 6～12 6～12
Capacity/Week 60～120HL 72~144HL 90~180HL 120~240HL 150~300HL 180~360HL 210~420HL
Electric Supply 3phase/380(220, 415,440)v/50 (60)Hz
Single Phase/ 220(110, 240v)/50(60)Hz
Heating Source Steam/Directly Fired
Location needed >70M2 >80M2 >100M2 >120M2 >140M2 >150M2 >180M2
Brewmaster 1
Configuration:
1.Malt Milling Unit
Malt miller, 500-800kg/h
Malt miller, 500-800kg/h
Particle adjustable rolling crusher
Flexible or steel auger for optional

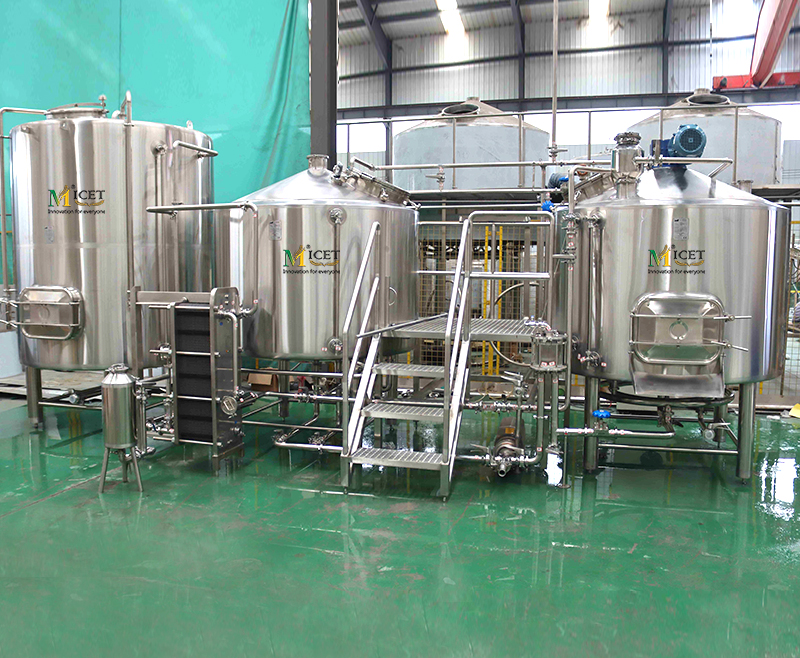

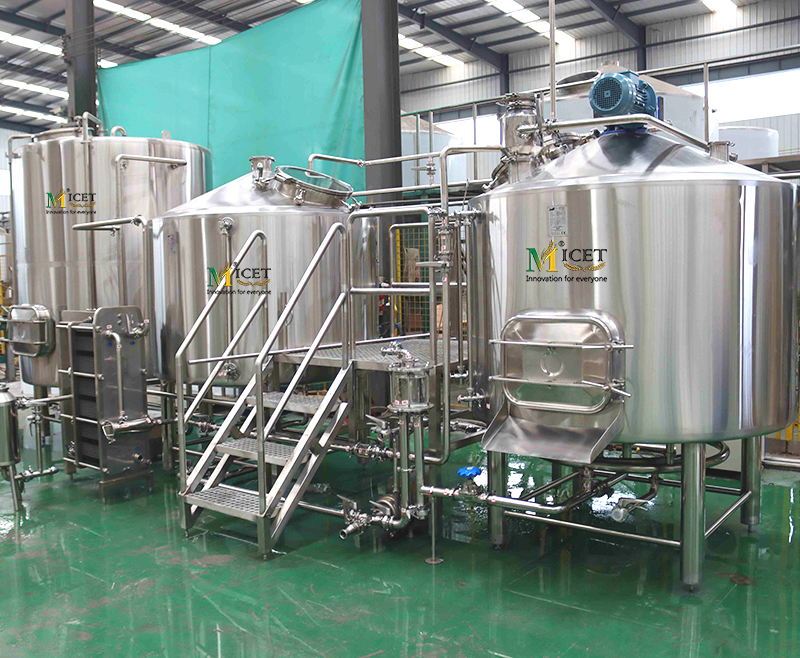

2.Brewhouse Unit
1500L Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination
3000L Hot water tank and glycol water tank for optional in special combinations
Infusion or decoction brewing methods are designed exactly
Stainless steel or copper cladding are popular
Two stages or single stage heat exchanger for wort cooling
Completely stainless steel integrated work platform
Sanitary and efficiency wort pump
All pipings and fittings

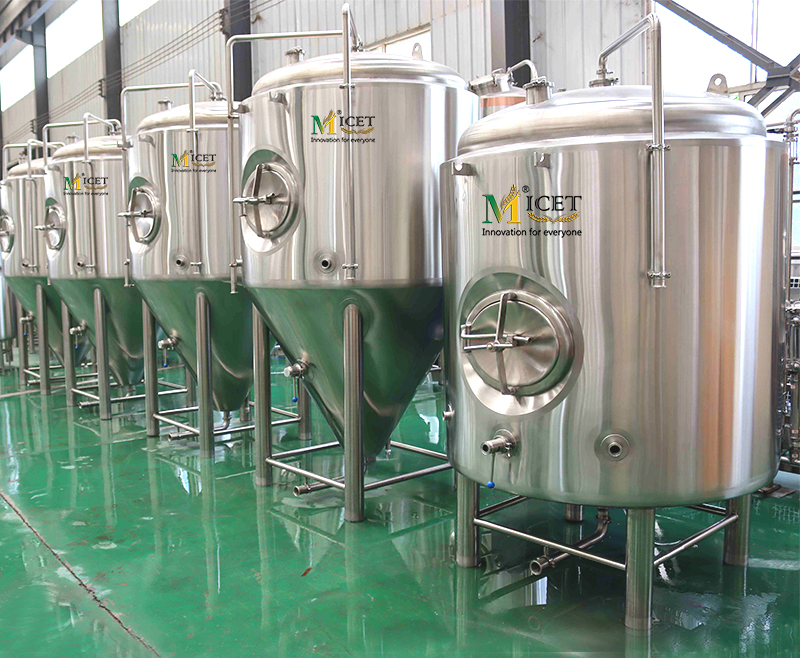

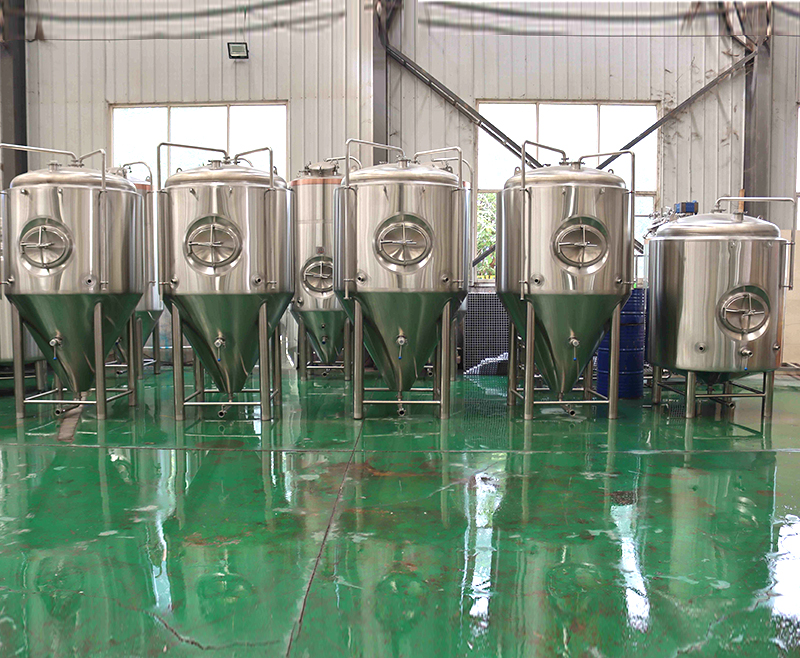

3.Fermentation Unit
1500L Standard stainless steel conical cylindrical fermentation tanks
Single size as brewhouse is common used in restaurant
Tanks quantity is exactly calculated by fermentation cycle for various beers
All manhole, valves, pressure gauges, fittings etc are included
In restaurant or bar, beers are always served as craft beer without filtration
4. Bright Tank Unit
1500L Standard stainless steel bright tanks for beer maturation, conditioning, service, carbonation
Single size as fermenter is common used in restaurant or bar
Tanks quantity is exactly calculated for various beers and the function
All manhole, valves, stone, gauges, fittings etc are included
5. Cooling Unit
3000L Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing
Efficiency chillers or refrigerators with fryonto supply cooling energy
Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger
All pipes, fitting, insulation materials are included
6. Controlling Unit
Electrical controlling cabinet with temperature, on-off controlling for brewhouse
Electrical controlling cabinet with temperature, on-off controlling for cooling parts
Temperature controller, thermocouple, solenoid valves etc are included
PLC with touch screen panel for special request
7. Beer Dispense
Beer dispensing columns and faucets for directly beer service
Keg filling and rinsing machine
Manually bottling machines for self consumption
8. Other Facilities
Portable CIP system
Why choose Micet? Micet: Innovation for Everyone.
1. MICET Brand:
MICET: “Innovative & Craft Brewing Equipment” can be broken down to; “M” in Chinese means “perfect”, ”I” is Innovation and “ C” is craftsmanship. Our quality driven approach at MICET has formed our business concept for our company and corporate culture. MICET always adheres to the spirit of craftsmanship (quality), culture (talent), and innovation consciousness (research and development) as the main driving force of our enterprise development. MICET is a China-Canada Cooperative Leading Brewery equipment manufacturer with lots of projects installed worldwide and distributors in different country, like Canada, USA, UK, France, Romania, Italy, Brazil, Argentina, South Africa, India, etc.,. We focus on high-end product line and insist on craftsman spirit, perform strict quality control and process testing in production to ensure that customers have good expectations for equipment and on-time delivery.
2. Our Team:
The Owner of MICET with 9 years of international sales experiences understands the needs of clients from different countries. Being trustworthy, valuing quality and services and making sure clients are satisfied with the equipment delivered has placed MICET in the top tier of equipment manufacturing.
Our Production Director has 10 years of experience in equipment production with excellent communication skills, workshop management and quality control Mr. Fan ensures that all equipment leaving the factory adheres to the highest quality.
Our Quality Inspector has 7 years of experience with production process control, testing, inspection, shipping safety and making sure that all the equipment leaves the factory and arrives to our clients in perfect condition.
Our Design Technician is a design engineer graduating from brewing university with 7 years experiences in designing CAD, 3D and equipment design.
Our After-Sales Engineers has been working on equipment installation for 9 years in China & abroad.
Our Purchase Engineers experiences with installation, brewing and designing allows for MICET to find all solutions. MICET provide professional engineers for installation and after-sale all over the world depending on our clients’ needs.
3. Products quality control:
Our factory is working under a 5S management with professional and strict inspections along with testing as each process is completed. Each order has strict inspection records from material inspection & referencing, detailed production progress and final product inspection before to delivery and packing. Our goal is to ensure the client receives the highest quality equipment.
4. Products and workmanship:
MICET production adheres to the highest quality production standards with water cooled welding, uniform dimpled steam & cooling jackets to ensure uniformed heating & cooling. All welds undergo passivation and are polished to the customer’s request.
5. Warranty:
MICET provides a 3 years warranty on tanks sold without manufacturing defects from the factory. MICET does not cover damage to tanks from unloading of tanks at customer site, damage resulting from improper use of tanks for products other than beer or appropriate beverage, damage from exceeding designed tanks pressure. MICET provides a 1 year warranty on auxiliaries and accessories provided they are used under the scope not exceeding pressures, temperatures, or improper handling.
6. Factory:
MICET factory covers 5000m², with 3 different production areas, parts & components area, receiving dock & inspection, cutting, welding & polishing area along with our finished product display area. Our production machinery includes: plasma cutting machines, plate rolling machines, cone rolling machines, shearing machines, polishing machines, bending machines, threading machines and all the necessary components to produce world class equipment. Our products are exported to more than 30 countries in the world.
More details or requests, just contact with us: [email protected]
