Part 1: Introduction:

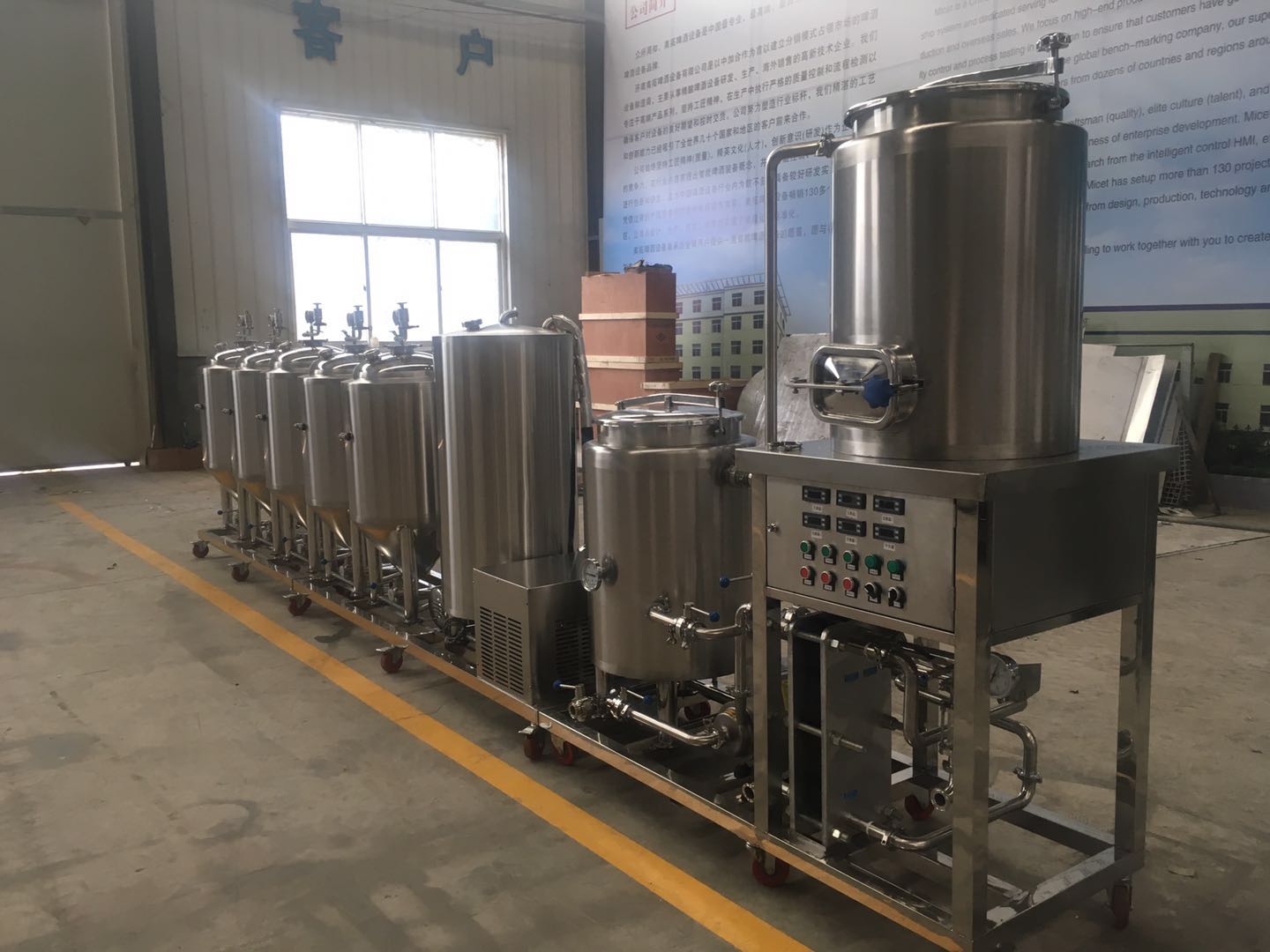

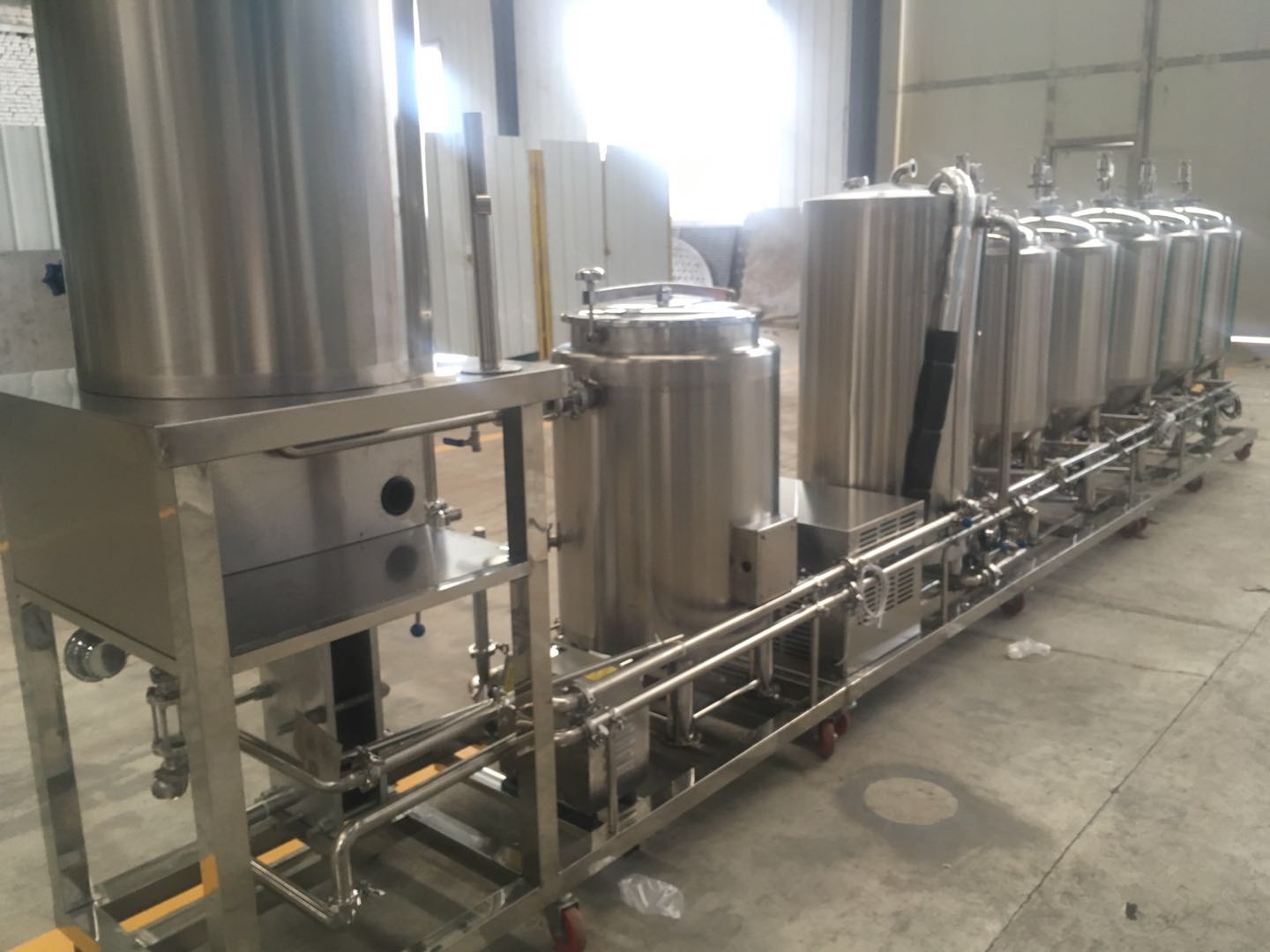

This skid pilot brewing system is designed for craft brewery and home brewers who has been experienced in simple home brewing and would like to be change to commercial brewing. This system has all functions which a larger microbrewery system. 2 vessel brewhouse with mash/lauter tun and kettle whirlpool tank. Five fermentation tanks are all insulated and jacketed with temperature controller for each. The glycol cooling system has one small ice water tank and a mini stainless cover chiller device. All the system seats on a skid with heavy wheels. It is very easy to move.
Part 2: Configuration:
1x 100L mash/lauter tun;
1x 100L boiling whirlpool tank
1x 200L Hot liquor tank
1x Plate heat exchanger for wort cooling
1x Centrifugal type wort pump
5x 100L fermentation tank with cooling jacket and insulation
1x Glycol water tank and chiller for cooling fermentation tanks
1x Controlling panel for all tanks temperature control, digital PID panel or plc optional
Part 3: Power request
Heating Elements: 6kw; 220v/50,60Hz;
Wort pump:0.55kw; 220v/50,60Hz;
Refrigerator:1.5KW; 220v/50,60Hz;
Part 3: Packing and shipping
3*Wooden case and steel frame packing
Net Weight: 800kg
Dimension: 5000 x800 x1750mm
Installed area:10m2
Why choose Micet? Micet: Innovation for Everyone.
1. MICET Brand:
MICET: “Innovative & Craft Brewing Equipment” can be broken down to; “M” in Chinese means “perfect”, ”I” is Innovation and “ C” is craftsmanship. Our quality driven approach at MICET has formed our business concept for our company and corporate culture. MICET always adheres to the spirit of craftsmanship (quality), culture (talent), and innovation consciousness (research and development) as the main driving force of our enterprise development. MICET is a China-Canada Cooperative Leading Brewery equipment manufacturer with lots of projects installed worldwide and distributors in different country, like Canada, USA, UK, France, Romania, Italy, Brazil, Argentina, South Africa., etc.,. We focus on high-end product line and insist on craftsman spirit, perform strict quality control and process testing in production to ensure that customers have good expectations for equipment and on-time delivery.
2. Our Team:
The Owner of MICET with 9 years of international sales experiences understands the needs of clients from different countries. Being trustworthy, valuing quality and services and making sure clients are satisfied with the equipment delivered has placed MICET in the top tier of equipment manufacturing.
Our Production Director has 10 years of experience in equipment production with excellent communication skills, workshop management and quality control Mr. Fan ensures that all equipment leaving the factory adheres to the highest quality.
Our Quality Inspector has 7 years of experience with production process control, testing, inspection, shipping safety and making sure that all the equipment leaves the factory and arrives to our clients in perfect condition.
Our Design Technician is a design engineer graduating from brewing university with 7 years experiences in designing CAD, 3D and equipment design.
Our After-Sales Engineers has been working on equipment installation for 9 years in China & abroad.
Our Purchase Engineers experiences with installation, brewing and designing allows for MICET to find all solutions. MICET provide professional engineers for installation and after-sale all over the world depending on our clients’ needs.
3. Products quality control:
Our factory is working under a 5S management with professional and strict inspections along with testing as each process is completed. Each order has strict inspection records from material inspection & referencing, detailed production progress and final product inspection before to delivery and packing. Our goal is to ensure the client receives the highest quality equipment.
4. Products and workmanship:
MICET production adheres to the highest quality production standards with water cooled welding, uniform dimpled steam & cooling jackets to ensure uniformed heating & cooling. All welds undergo passivation and are polished to the customer’s request.
5. Warranty:
MICET provides a 3 years warranty on tanks sold without manufacturing defects from the factory. MICET does not cover damage to tanks from unloading of tanks at customer site, damage resulting from improper use of tanks for products other than beer or appropriate beverage, damage from exceeding designed tanks pressure. MICET provides a 1 year warranty on auxiliaries and accessories provided they are used under the scope not exceeding pressures, temperatures, or improper handling.
6. Factory:
MICET factory covers 5000m², with 3 different production areas, parts & components area, receiving dock & inspection, cutting, welding & polishing area along with our finished product display area. Our production machinery includes: plasma cutting machines, plate rolling machines, cone rolling machines, shearing machines, polishing machines, bending machines, threading machines and all the necessary components to produce world class equipment. Our products are exported to more than 30 countries in the world.
