Part 1: Equipment Introduction:

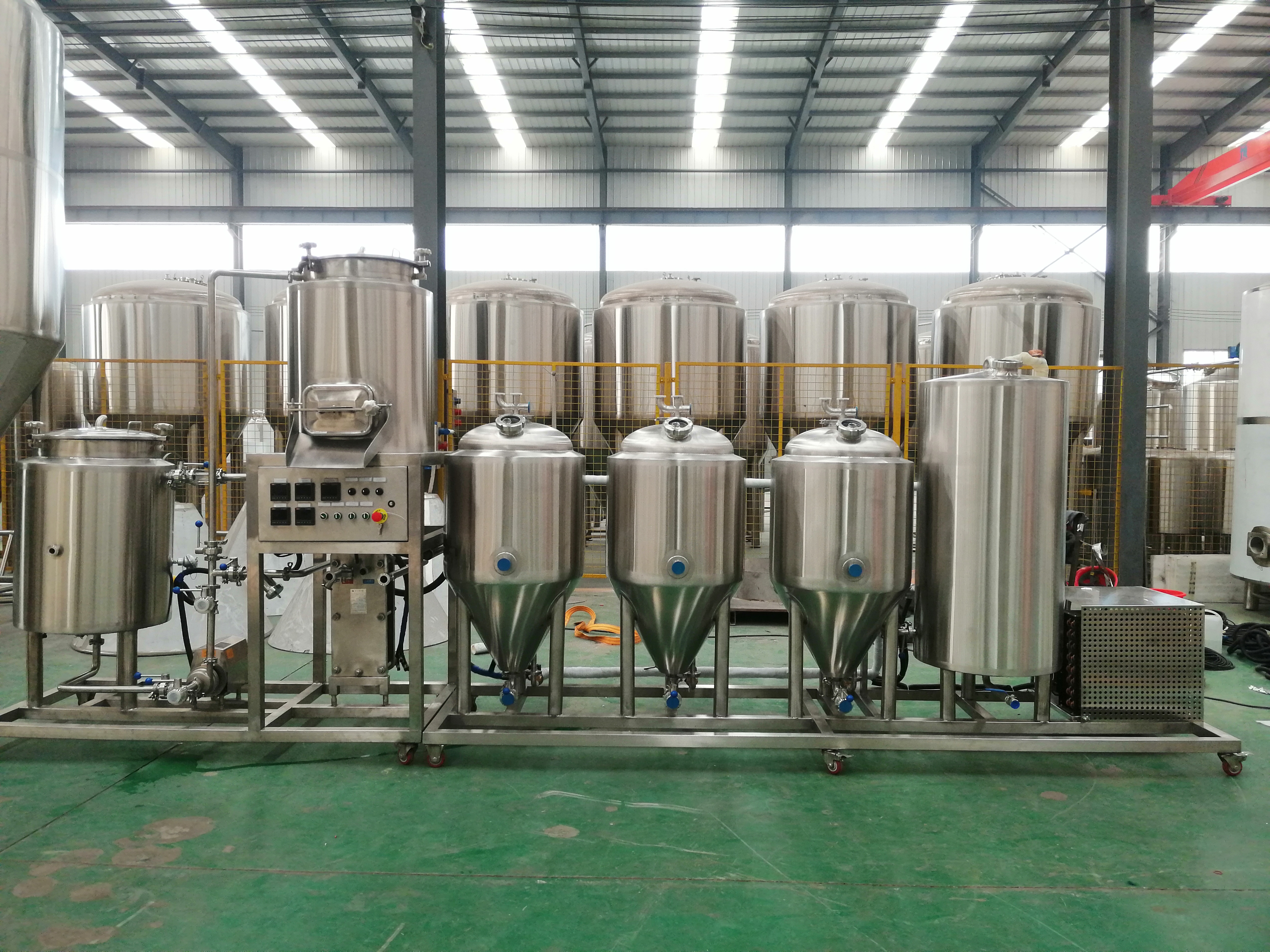

This skid pilot brewing system is designed for craft brewery and home brewers who has been experienced in simple home brewing and would like to be change to commercial brewing. It's can save some space, suitable for home breing. This system has all functions which a larger microbrewery system. 2 vessel brewhouse with mash/lauter tun and kettle whirlpool tank. Five fermentation tanks are all insulated and jacketed with temperature controller for each. The glycol cooling system has one small ice water tank and a mini stainless cover chiller device. All the system seats on a skid with heavy wheels. It is very easy to move.

Part 2: Configuration:

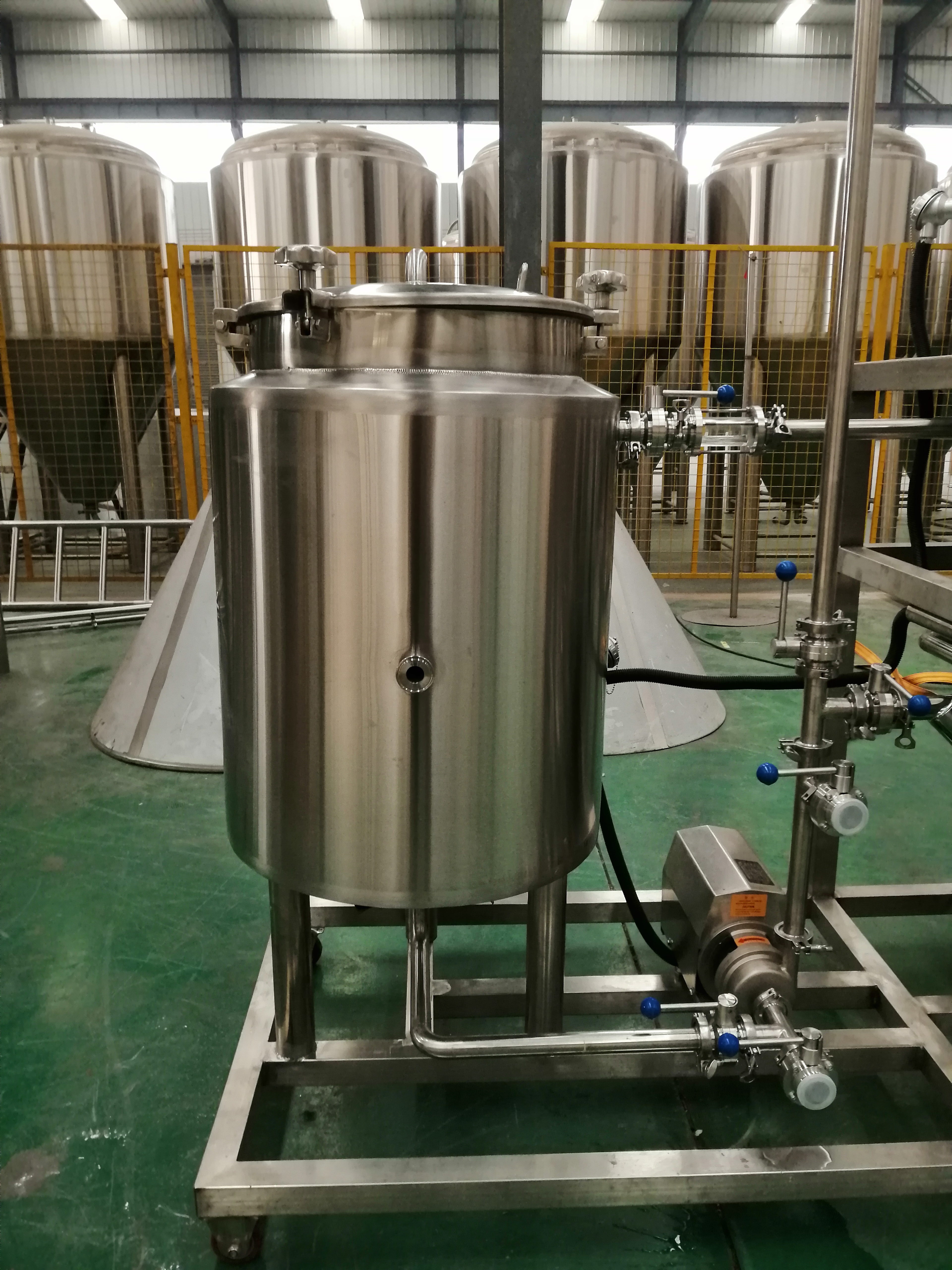

1x 100L mash/lauter tun;
1x 100L boiling whirlpool tank;
1x Plate heat exchanger for wort cooling;
1x Centrifugal type wort pump;

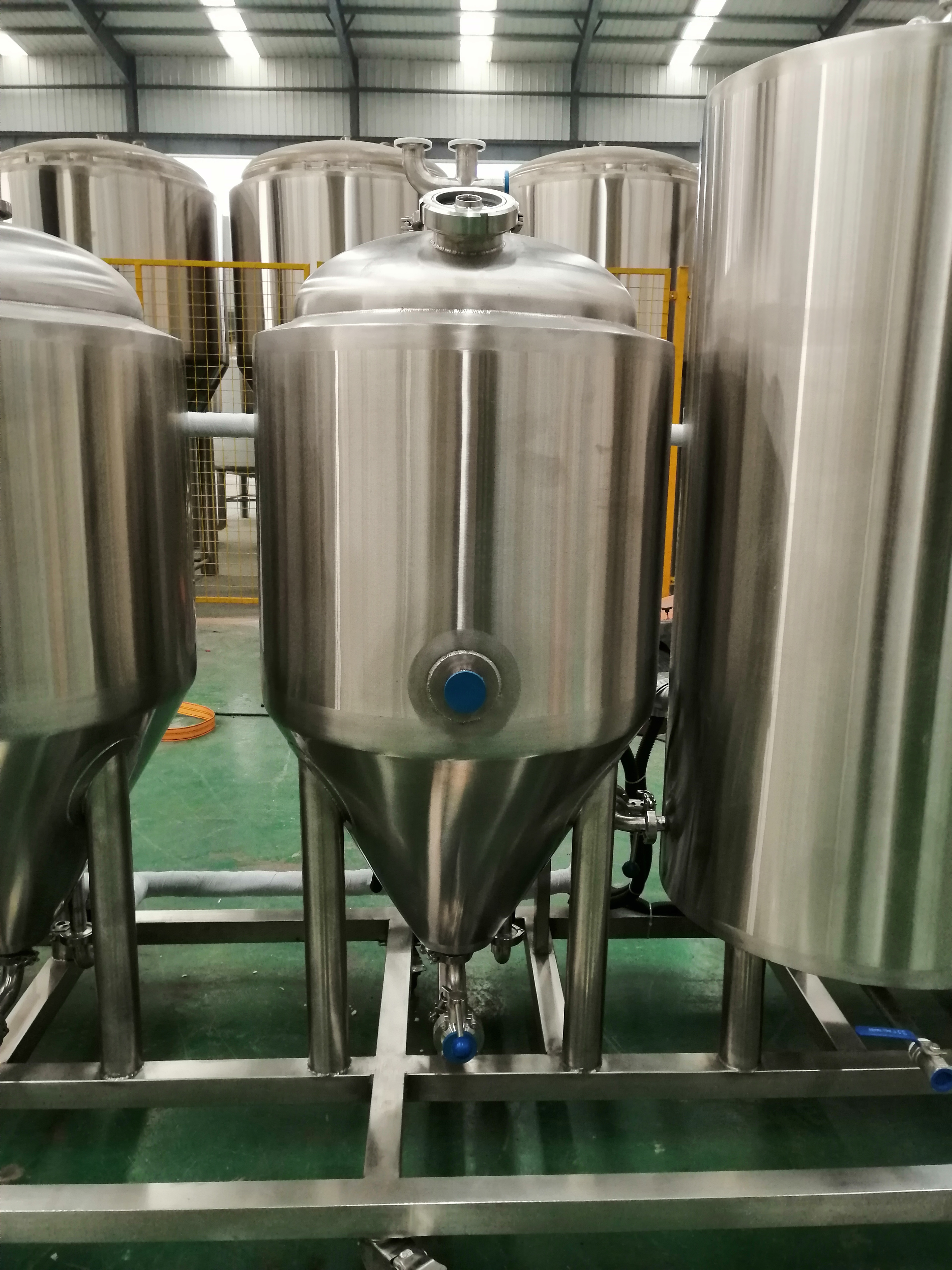

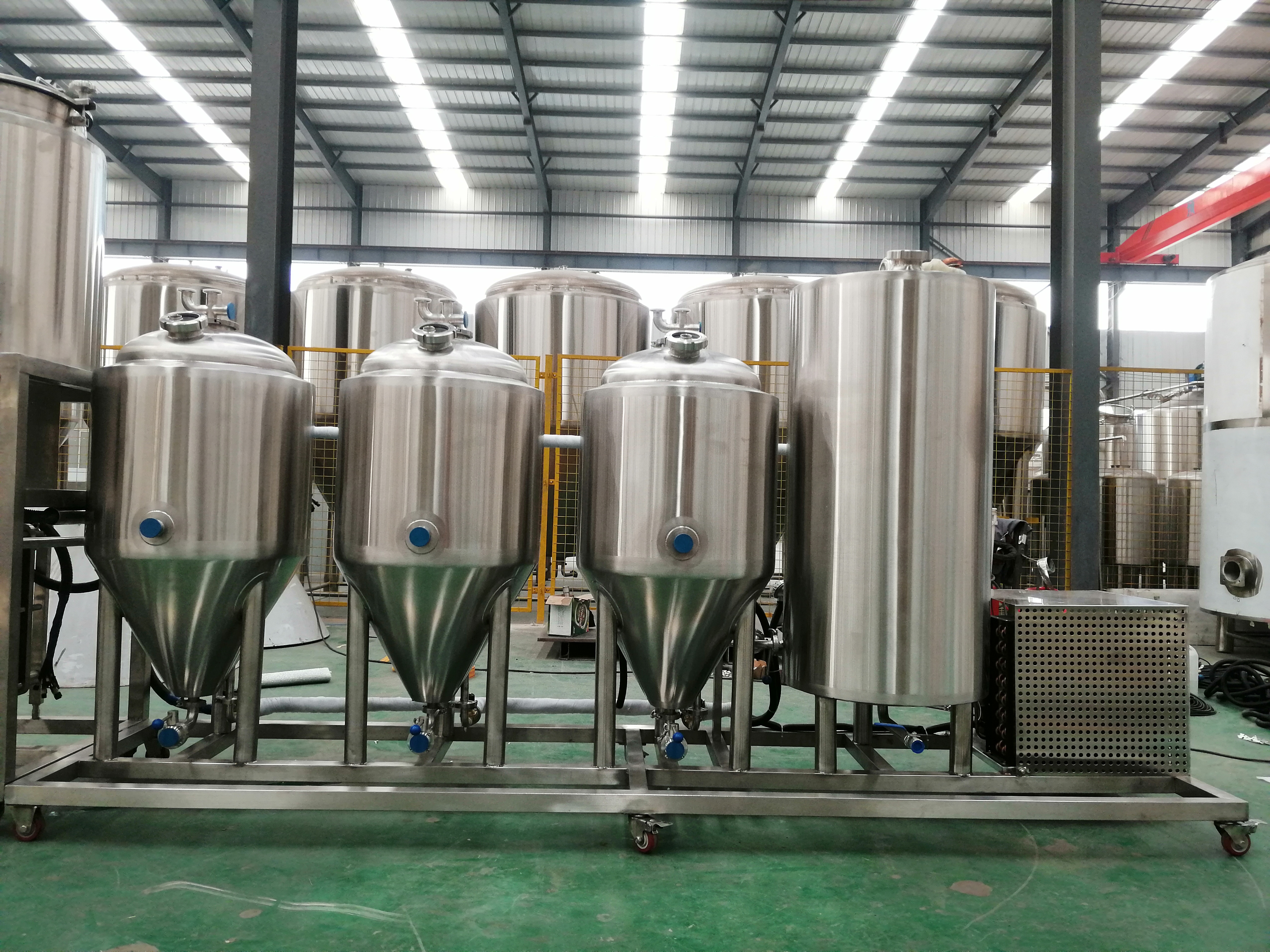

3x 100L fermentation tank with cooling jacket and insulation;
1x Glycol water tank and chiller for cooling fermentation tanks;
1x Controlling panel for all tanks temperature control, digital PID panel or plc optional;
