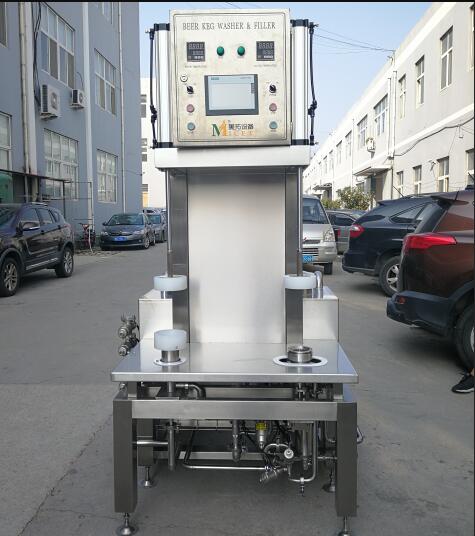

Beer Keg Washing and Filling AIO Machine
Type1: Table board Fixed
Main Technical Parameters
Equipment Outer Dimensions 1200*1600*2000mm
Net Weight 380KG
Power Steam Heating: 3KW Electric Heating: 18KW
Production Capacity 30-40 kegs/H
Applicable Kegs Keg with Diameter 250-500mm, Height 360-600mm
Tank Heating Way Electric Heating or Steam Heating
Table Board Fixed
Power Supply Voltage AC 380V 50HZ (customized)
Main function and feature
1、All procedures are thoroughly controlled by SIEMENS programmable controller. All parameters (time values) can be adjusted and showed through touch screen without stopping the machine
2、Cleaning and filling process can be finished in this machine at one time.
3、All use pneumatic double acting Angle seat valve which could ensure the action sensitivity and reliability
4、With unique pressure maintaining system，performance stable and reliable, beer loss minimum.
5、With CIP automatic cleaning system
Working process
Filling station: Fix the keg-keg spear opened--filling--stop—keg spear washed—take the keg
Washing Station: Impact the keg —keg spear opened ---Drain residue--water rinse--caustic rinse--hot water rinse--steam sterilization -- Co ₂ pressurization -- Take the keg

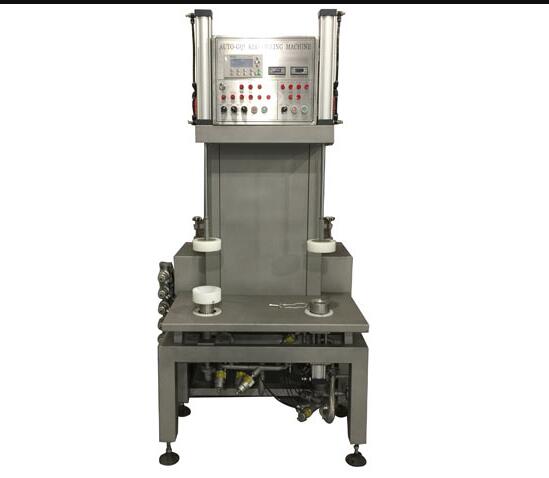

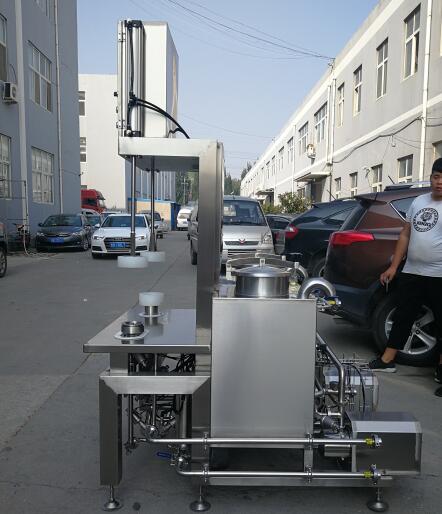

Type 2: Table board lifting
Main Technical Parameters
Equipment Outer Dimensions 1200*1600*2000mm
Net Weight 380KG
Power Steam Heating: 3KW Electric Heating: 18KW
Production Capacity 30-40 kegs/H
Applicable Kegs Keg with Diameter 250-500mm, Height 360-600mm
Tank Heating Way Electric Heating or Steam Heating
Table Board lifting
Power Supply Voltage AC 380V 50HZ (customized)
Main function and feature
1、Automatic control by PLC, all parameters can be adjusted through touch screen.
2、Cleaning and filling process can be finished in this machine at one time.
3、With unique pressure maintaining system，performance stable and reliable, beer loss minimum.
4、With CIP automatic cleaning system
5.Table board is lifting, and convenient to take kegs, labor-saving and time-saving.
Working process
Filling station: Fix the keg-keg spear opened--filling--stop—keg spear washed—take the keg
Washing Station: Impact the keg —keg spear opened ---Drain residue--water rinse--caustic rinse--hot water rinse--steam sterilization -- Co ₂ pressurization -- Take the keg
