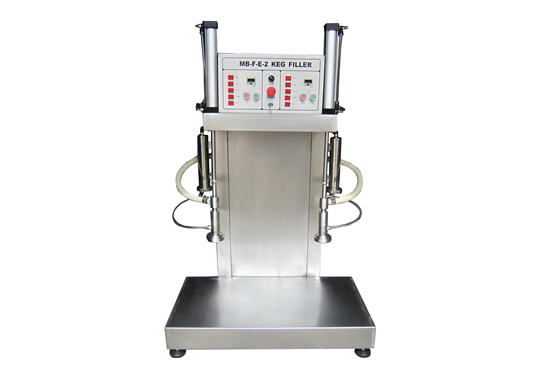

Double Stations Beer Keg Filling Machine for beer filling
Main Technical Parameters
Equipment Outer Dimensions 1000*850*1550mm
Net Weight 130KG
Power 60W
Production Capacity 60-80kegs/H
Filling Method Keg Topside up
Applicable Kegs Keg with Diameter 250-500mm, Height 360-600mm
Power Supply Voltage AC 220V 50HZ（customized）
Main function and feature
1、All procedures are thoroughly controlled by SIEMENS programmable controller. All parameters (time values) can be adjusted without stopping the machine.
2. Two filling stations with separate control systems.
3.Pressure maintaining system performance is stable and reliable, to make sure the lowest beer loss compared to other similar products.
4.Could fill the kegs with different volume directly, and do not need to adjust any parameter
Working process:
Fix the keg ---Start -- Co ₂ pressurization -Filling-- stop-- Take the keg
Two Stations Beer Keg Filling Machine with flow meter
Main Technical Parameters
Equipment Outer Dimensions 1000*850*1550mm
Net Weight 180KG
Production Capacity 60-80 kegs/Hr
Filling Method Keg topside up
Applicable Kegs Keg with Diameter 250-500mm, Height 360-600mm
Power Supply Voltage AC 220V 50HZ（customized）
Main function and feature
1.With flow meter, can control the filling amount precisely, not affected by the size of the keg.
2. All procedures are thoroughly controlled by SIEMENS programmable controller. All parameters (time values) can be adjusted and shown through touch screen without stopping the machine.
3. Germany import flow meter, accurate measurement, high precision.
4. Two filling stations with separate control systems，can fill kegs with different volume separately.
5. The LCD screen can display filling process synchronously, and also can count the quantity of kegs and the total filling volume.
Working process:
Fix the keg ---Start -- Co ₂ pressurization -Filling and counting-- stop-- Take the keg
