Introduction:

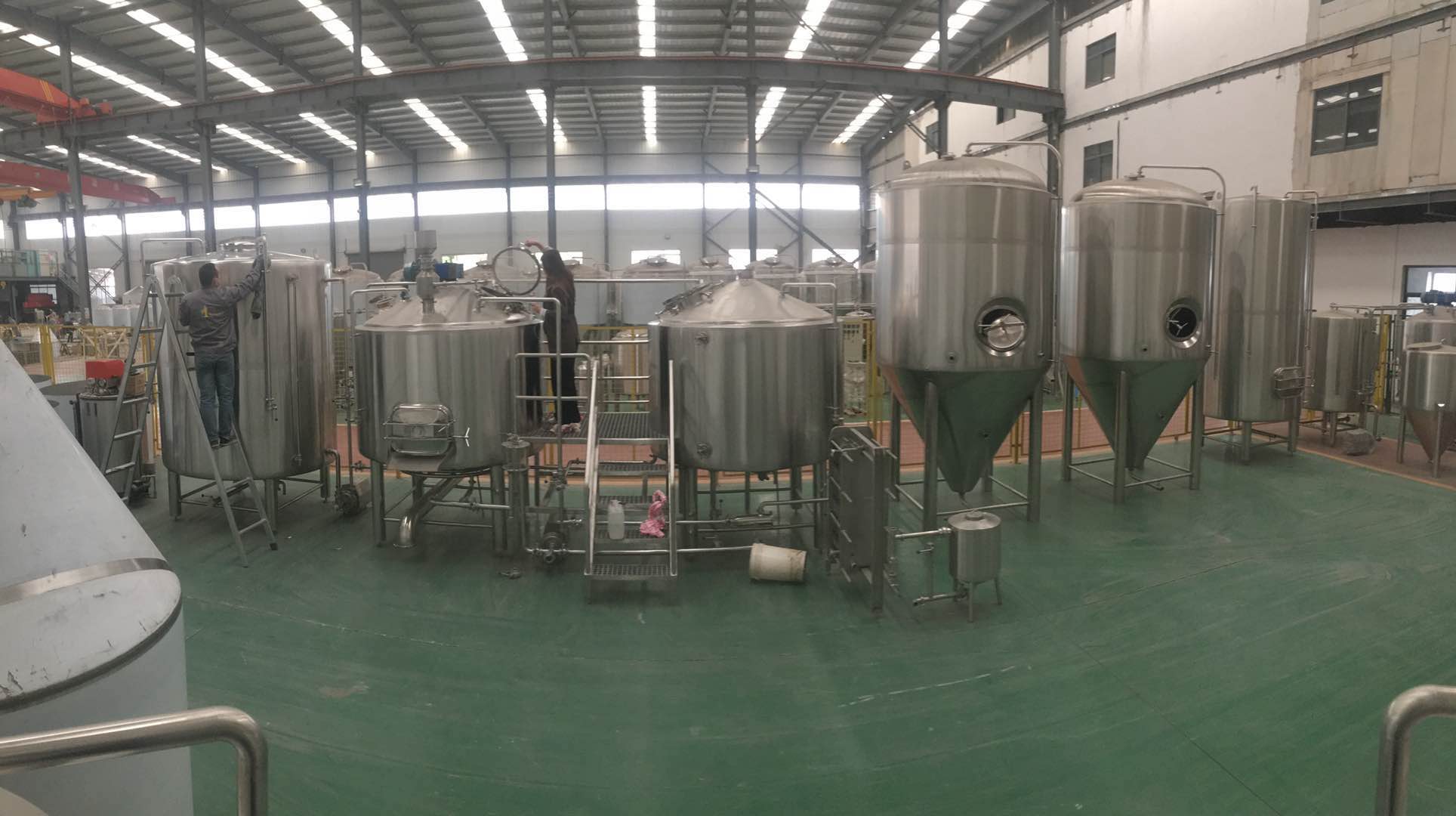

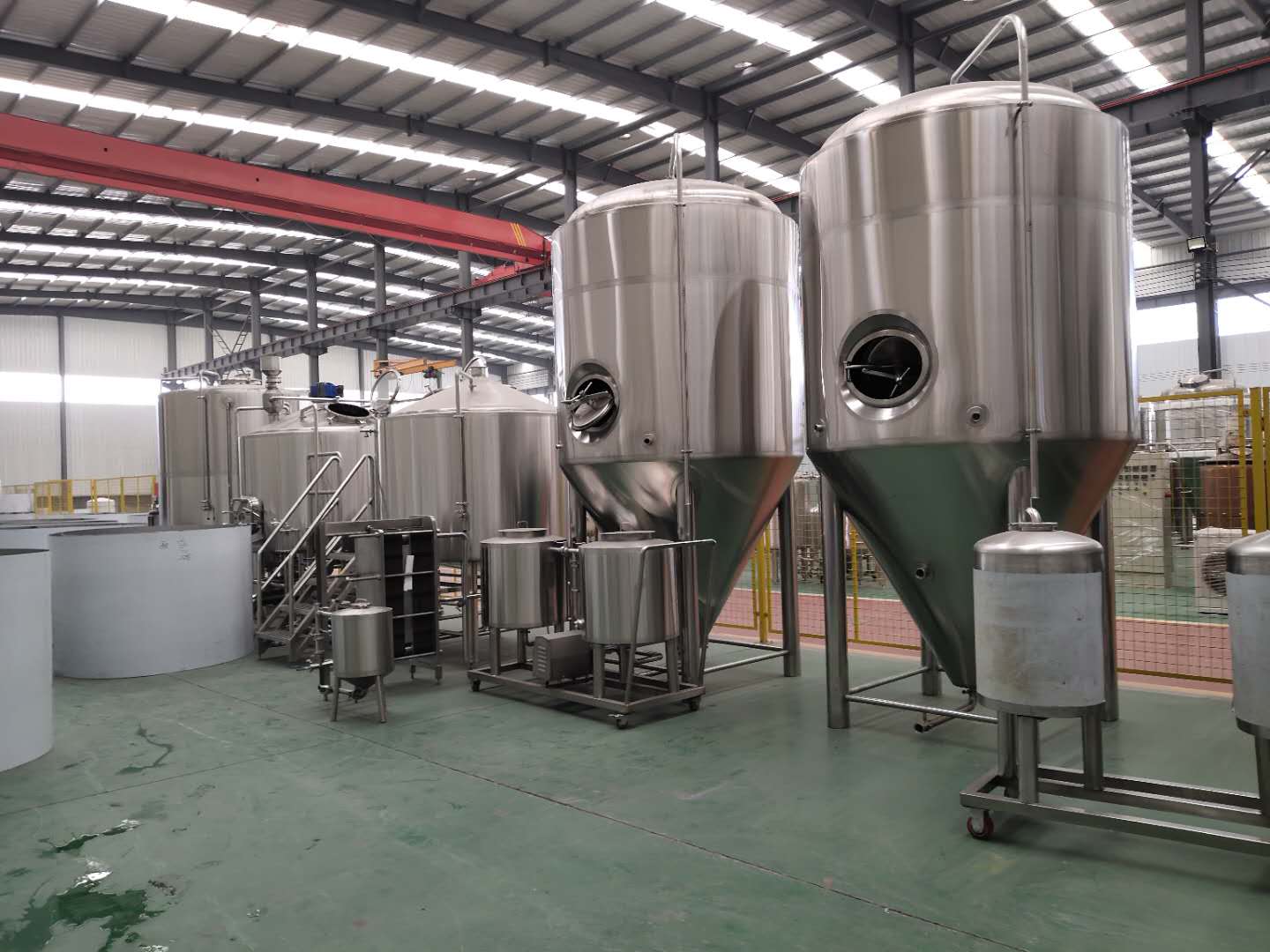

This set of 2500L brewery plant is combined with Mash/lauter tun, kettle/whirlpool tank, and double brewed hot liquor tank, which was designed and installed for commercial brewery in Romania. The configuration as follows.
Specifications:
1. Malt transporting system
Inside packed with glcyol tank
cold liquor pump CE listed
5. 200L CIP cleaning system
200L Alkali tank with heating function BSP fitting
200L Sterilization tank
ABB CE certificated washing pump
Coontrol cabinet
6. PID semi-automatic control system
7. Automatic Canning system
Specifications:
1. Malt transporting system

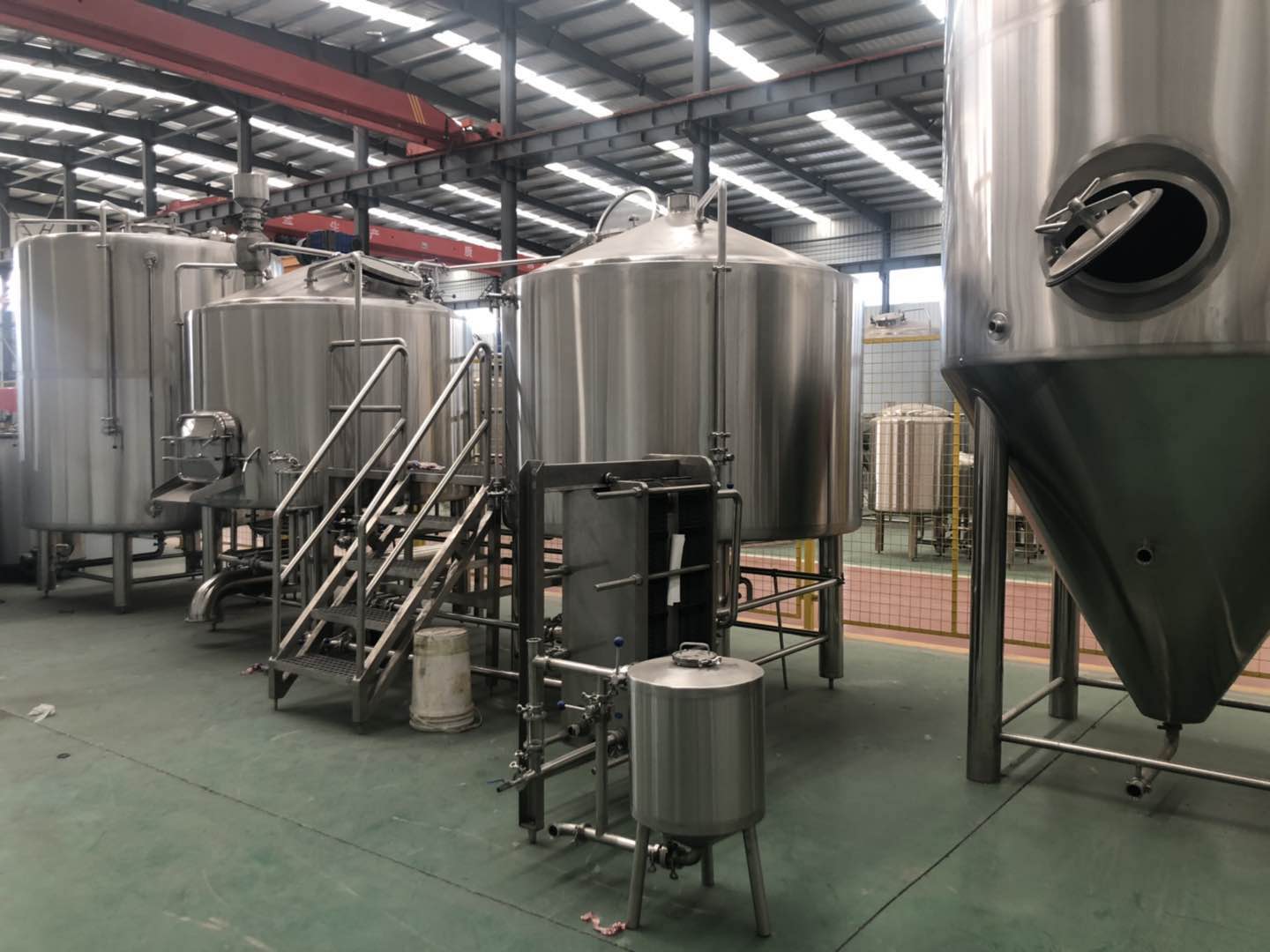

2. 2500l Brewhouse Unit
Mash/Lauter tun, kettle/whirlpool tank
Two stages stage heat exchanger for wort cooling
Sanitary SUS 304 wort pump
Special designed balance tank horizonal, full stainless steel
Water leaking work platform
Hops filter before exchanger after whirlpooling
5000L Double sized hot liquor tank
ABB CE certificated HLT pump
3. 2*4000l Fermentation Unitank Unit
Hops filter before exchanger after whirlpooling
5000L Double sized hot liquor tank
ABB CE certificated HLT pump

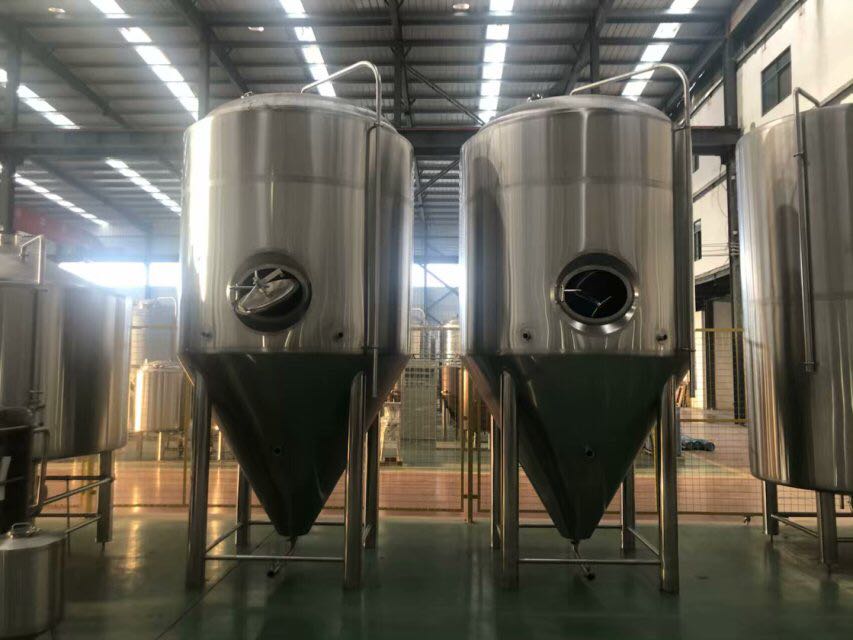

3. 2*4000l Fermentation Unitank Unit
Standard stainless steel 60 conical cylindrical fermentation tanks
Single size as brewhouse used in microbreweries
Tanks quantity is exactly calculated by fermentation cycle for various beers
Side shdowless manhole, multi-positioned butterfly valves, pressure gauges, fittings etc.,
4. Glycol cooling system

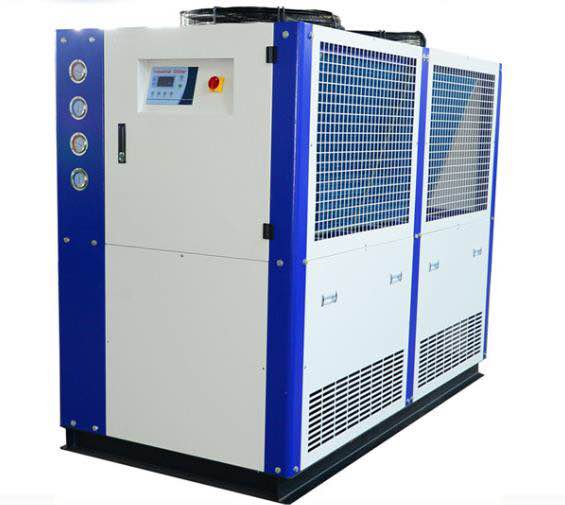

1*20P Glycol chillers 4. Glycol cooling system
Inside packed with glcyol tank
cold liquor pump CE listed
5. 200L CIP cleaning system
200L Alkali tank with heating function BSP fitting
200L Sterilization tank
ABB CE certificated washing pump
Coontrol cabinet
6. PID semi-automatic control system
Electrical controlling cabinet with temperature, on-off controlling for brewhouse
Electrical controlling cabinet with temperature, on-off controlling for cooling parts
Temperature controller, thermocouple, solenoid valves etc are included
7. Automatic Canning system
3 in 1 combined automatic cans filler/washer and capper
Electric components CE certified
Automatic labeling machine
About us:
http://micetbrewing.com/about-us/
Our Services:
http://micetbrewing.com/service/
Electric components CE certified
Automatic labeling machine
About us:
http://micetbrewing.com/about-us/
Our Services:
http://micetbrewing.com/service/
Technical Notes:
All Construction is from SUS 304 food grade stainless steel, all pipes are SUS304
All signs & wording in English
All tanks to be supplied with Data Plates including Test Data & Serial Number
All tanks will be tested and inspected in the NDT room after construction & Quality Control Checks
All jackets will be tested using water pressure testing, testing pressure: 0.4Mpa (4 Bar) & working pressure:0.2Mpa (2Bar)
All tanks will be pressure tested for 48hours before leaving the MICET factory;
All the welds are full TIG welded by water spray method to ensure uniform weld pattern with full pickling & passivation
All tanks are mirror polishing inside, to be Ra 0.4um.
All Gaskets are manufactured with EPDM
Why choose Micet? Micet: Innovation for Everyone.
1. MICET Brand:
MICET: “Innovative & Craft Brewing Equipment” can be broken down to; “M” in Chinese means “perfect”, ”I” is Innovation and “ C” is craftsmanship. Our quality driven approach at MICET has formed our business concept for our company and corporate culture. MICET always adheres to the spirit of craftsmanship (quality), culture (talent), and innovation consciousness (research and development) as the main driving force of our enterprise development. MICET is a China-Canada Cooperative Leading Brewery equipment manufacturer with lots of projects installed worldwide and distributors in different country, like Canada, USA, UK, France, Romania, Italy, Brazil, Argentina, South Africa., etc.,. We focus on high-end product line and insist on craftsman spirit, perform strict quality control and process testing in production to ensure that customers have good expectations for equipment and on-time delivery.
2. Our Team:
The Owner of MICET with 9 years of international sales experiences understands the needs of clients from different countries. Being trustworthy, valuing quality and services and making sure clients are satisfied with the equipment delivered has placed MICET in the top tier of equipment manufacturing.
Our Production Director has 10 years of experience in equipment production with excellent communication skills, workshop management and quality control Mr. Fan ensures that all equipment leaving the factory adheres to the highest quality.
Our Quality Inspector has 7 years of experience with production process control, testing, inspection, shipping safety and making sure that all the equipment leaves the factory and arrives to our clients in perfect condition.
Our Design Technician is a design engineer graduating from brewing university with 7 years experiences in designing CAD, 3D and equipment design.
Our After-Sales Engineers has been working on equipment installation for 9 years in China & abroad.
Our Purchase Engineers experiences with installation, brewing and designing allows for MICET to find all solutions. MICET provide professional engineers for installation and after-sale all over the world depending on our clients’ needs.
3. Products quality control:
Our factory is working under a 5S management with professional and strict inspections along with testing as each process is completed. Each order has strict inspection records from material inspection & referencing, detailed production progress and final product inspection before to delivery and packing. Our goal is to ensure the client receives the highest quality equipment.
4. Products and workmanship:
MICET production adheres to the highest quality production standards with water cooled welding, uniform dimpled steam & cooling jackets to ensure uniformed heating & cooling. All welds undergo passivation and are polished to the customer’s request.
5. Warranty:
MICET provides a 3 years warranty on tanks sold without manufacturing defects from the factory. MICET does not cover damage to tanks from unloading of tanks at customer site, damage resulting from improper use of tanks for products other than beer or appropriate beverage, damage from exceeding designed tanks pressure. MICET provides a 1 year warranty on auxiliaries and accessories provided they are used under the scope not exceeding pressures, temperatures, or improper handling.
6. Factory:
MICET factory covers 5000m², with 3 different production areas, parts & components area, receiving dock & inspection, cutting, welding & polishing area along with our finished product display area. Our production machinery includes: plasma cutting machines, plate rolling machines, cone rolling machines, shearing machines, polishing machines, bending machines, threading machines and all the necessary components to produce world class equipment. Our products are exported to more than 30 countries in the world.
