Introduction:
The draft beer machines is mostly installed in hotels, microbrewery, pub, hotels,etc., Micet brewing equipment supplier provide a turnkey solutions of draft beer equipment, from 200L-1000L. We also provide a full solution of opening a micro brewery, from site choosing, room construction, equipment purchasing, layout designing, installation and marketing sales, distribution,etc.,
Spcefications:

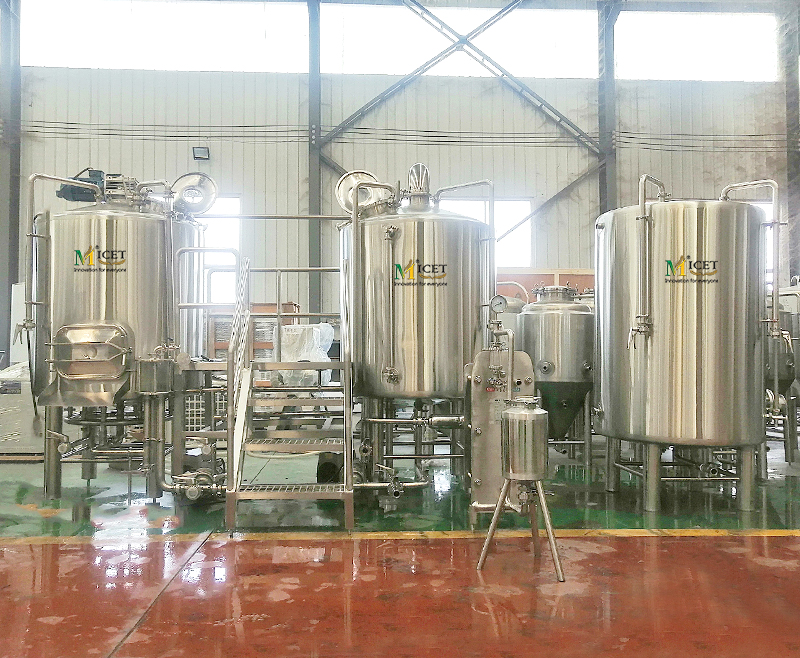

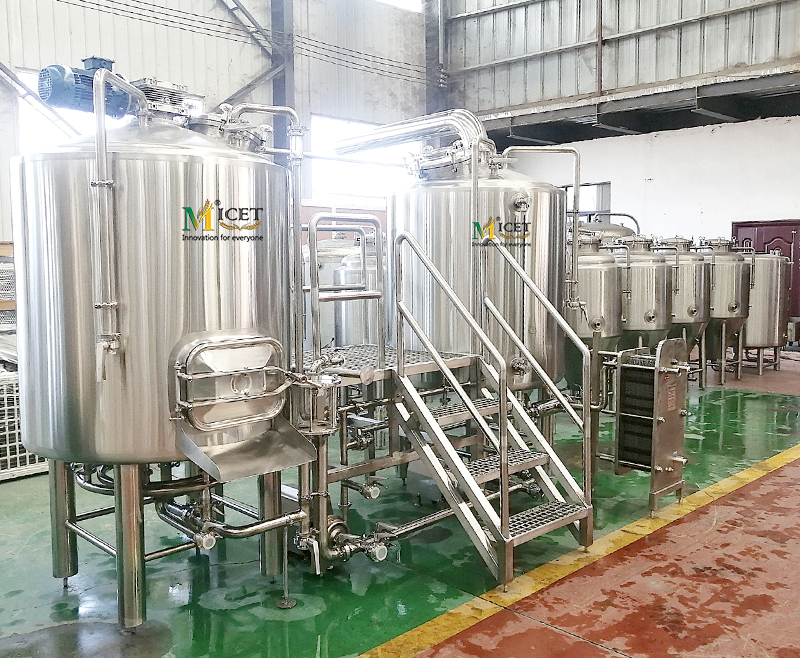

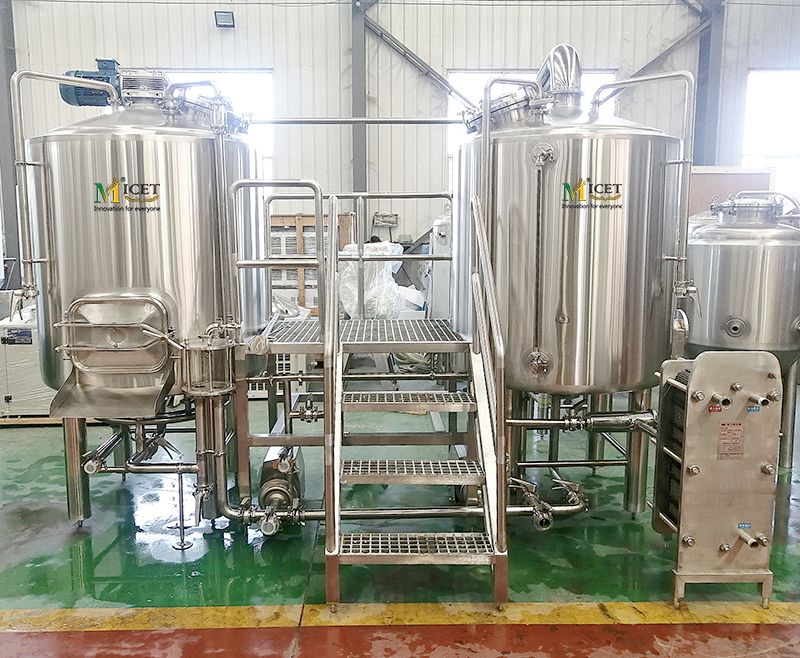

Main tank: Mash/lauter tun, kettle/whirlpool tank
Detailed configuration:
Mash/lauter tun:
Effective volume: 5HL, total volume: 6.25HL;
Inner-Jacket (SUS304), TH=:3.0mm; External-Jacket (SUS304), TH=2.0mm;
Insulation layer: PU-thickness: 80mm; Direct fired with rock wool;
Lauter tank equipped with plow knife (raker knife); Raker motor(CE, cUL)
Top manhole: round glass manhole; Side grain outdoor with grain chute;
Easy-clean and detachable Sparging sprayring
Laser cutting T-wires false bottom (filter);
Filter way: Suction filtration by speed controlled pump( CE, UL);
Flat base, with wort collection tube and underflush system
Equipped with balance tank and grain out dustpan;
360° coverage CIP spraying ball; Temperature measurement way: PT100
4 completely SUS304 heavy duty legs with leveling pads
Kettle/whirlpool tank:
Effective volume: 5HL, total volume: 6.25HL;
Inner-Jacket (SUS304), TH=:3.0mm; External-Jacket (SUS304), TH=2.0mm;
Insulation layer: PU-thickness: 80mm; Direct fired with rock wool;
Top manhole: round glass manhole;
360° coverage CIP spraying ball; Temperature measurement way: PT100
4 completely SUS304 heavy duty legs with leveling pads
Heating way: Steam heating/ electric heating/ direct fired heating optional.
Steam vent by steam condenser with spray nozzles
Sanitary leveling sight glass at the back of kettle;
Tangential whirlpool inlet
Optional configuration:
Hot water tank: 500L, 1000L Optional
Heat exchanger: hunging type Nanhua Brand
Paltform: Normal standard or water leaking type
Pumps

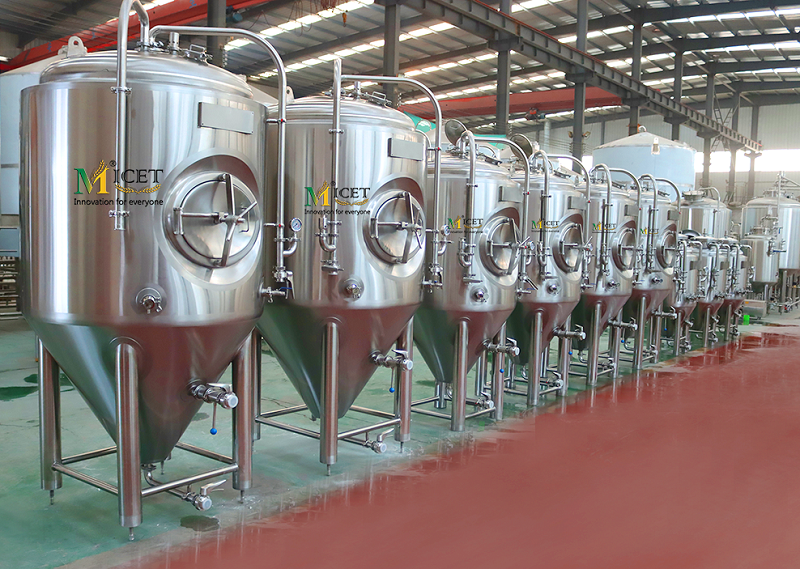

The number of FV and BBT depends on your requirements
Cooling system

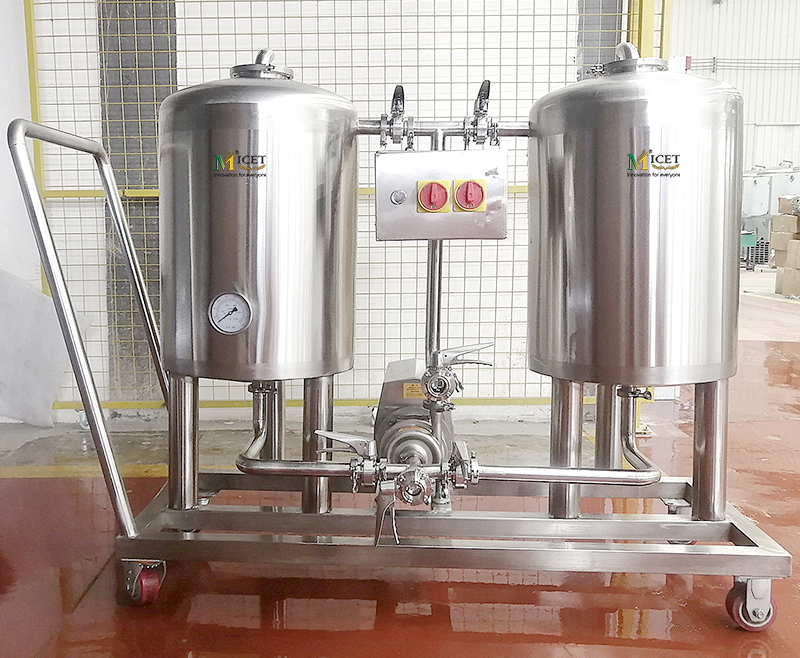

CIP cleaning system
Controlling system
Quality stanard:
1. Construction by highquality SUS 304 food grade stainless steel, all pipes are sus304;
2. All tanks will be tested and detected in the NDT room after finished, to ensure no leakage.
3. All jackets will do water pressure testing, testing pressure: 0.4Mpa, working pressure:0.15Mpa;
4. All tanks will be pressure protection 48hours before leaving from factory;
5. All the welding done by using water to protect the inner tank smooth and jackets uniform.
6. All the welds are TIG full welded, and acid pickled and passivated.
7. All tanks are mirror polishing inside, all ports are recessed type.
8. EPDM gasket
About us:
http://micetbrewing.com/about-us/
Our Services:
http://micetbrewing.com/service/
About us:
http://micetbrewing.com/about-us/
Our Services:
http://micetbrewing.com/service/
Why choose Micet? Micet: Innovation for Everyone.
1. MICET Brand:
MICET: “Innovative & Craft Brewing Equipment” can be broken down to; “M” in Chinese means “perfect”, ”I” is Innovation and “ C” is craftsmanship. Our quality driven approach at MICET has formed our business concept for our company and corporate culture. MICET always adheres to the spirit of craftsmanship (quality), culture (talent), and innovation consciousness (research and development) as the main driving force of our enterprise development. MICET is a China-Canada Cooperative Leading Brewery equipment manufacturer with lots of projects installed worldwide and distributors in different country, like Canada, USA, UK, France, Romania, Italy, Brazil, Argentina, South Africa. India, etc.,. We focus on high-end product line and insist on craftsman spirit, perform strict quality control and process testing in production to ensure that customers have good expectations for equipment and on-time delivery.
2. Our Team:
The Owner of MICET with 9 years of international sales experiences understands the needs of clients from different countries. Being trustworthy, valuing quality and services and making sure clients are satisfied with the equipment delivered has placed MICET in the top tier of equipment manufacturing.
Our Production Director has 10 years of experience in equipment production with excellent communication skills, workshop management and quality control Mr. Fan ensures that all equipment leaving the factory adheres to the highest quality.
Our Quality Inspector has 7 years of experience with production process control, testing, inspection, shipping safety and making sure that all the equipment leaves the factory and arrives to our clients in perfect condition.
Our Design Technician is a design engineer graduating from brewing university with 7 years experiences in designing CAD, 3D and equipment design.
Our After-Sales Engineers has been working on equipment installation for 9 years in China & abroad.
Our Purchase Engineers experiences with installation, brewing and designing allows for MICET to find all solutions. MICET provide professional engineers for installation and after-sale all over the world depending on our clients’ needs.
3. Products quality control:
Our factory is working under a 5S management with professional and strict inspections along with testing as each process is completed. Each order has strict inspection records from material inspection & referencing, detailed production progress and final product inspection before to delivery and packing. Our goal is to ensure the client receives the highest quality equipment.
4. Products and workmanship:
MICET production adheres to the highest quality production standards with water cooled welding, uniform dimpled steam & cooling jackets to ensure uniformed heating & cooling. All welds undergo passivation and are polished to the customer’s request.
5. Warranty:
MICET provides a 3 years warranty on tanks sold without manufacturing defects from the factory. MICET does not cover damage to tanks from unloading of tanks at customer site, damage resulting from improper use of tanks for products other than beer or appropriate beverage, damage from exceeding designed tanks pressure. MICET provides a 1 year warranty on auxiliaries and accessories provided they are used under the scope not exceeding pressures, temperatures, or improper handling.
6. Factory:
MICET factory covers 5000m², with 3 different production areas, parts & components area, receiving dock & inspection, cutting, welding & polishing area along with our finished product display area. Our production machinery includes: plasma cutting machines, plate rolling machines, cone rolling machines, shearing machines, polishing machines, bending machines, threading machines and all the necessary components to produce world class equipment. Our products are exported to more than 30 countries in the world.
