500L brewing equipment customized for a Belgian customer
According to the customer's requirements, on the left side of the brewhouse is a separate 1000L kettl
500L brewing equipment customized for a Belgian customer
500L brewing equipment customized for a Belgian customer

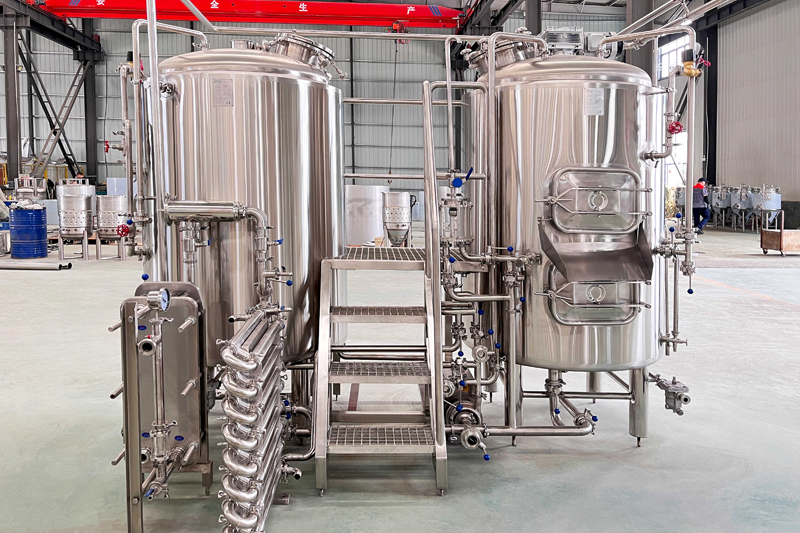

According to the customer's requirements, on the left side of the brewhouse is a separate 1000L kettle tank, equipped with two heat exchangers (4㎡ double plate heat exchanger + 3㎡ single tube heat exchanger). Under reasonable conditions, we can design and produce any beer brewing equipment you want, meeting your requirements.
The main configuration of 500L brewing system:
-
Malt miller 300kg/h
-

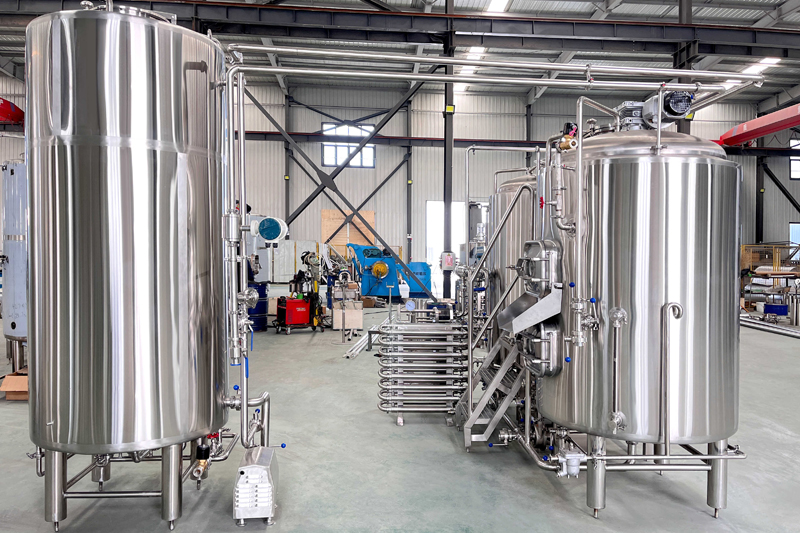

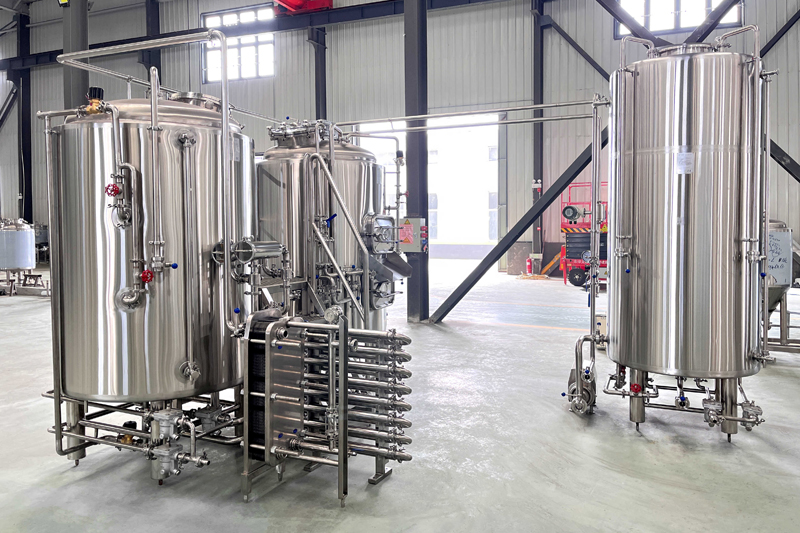

500L 2 tanks 3 vessels brewhouse: 500L Mash&Lauter tun+500L Whirlpool tank+1000L Kettle tun
-

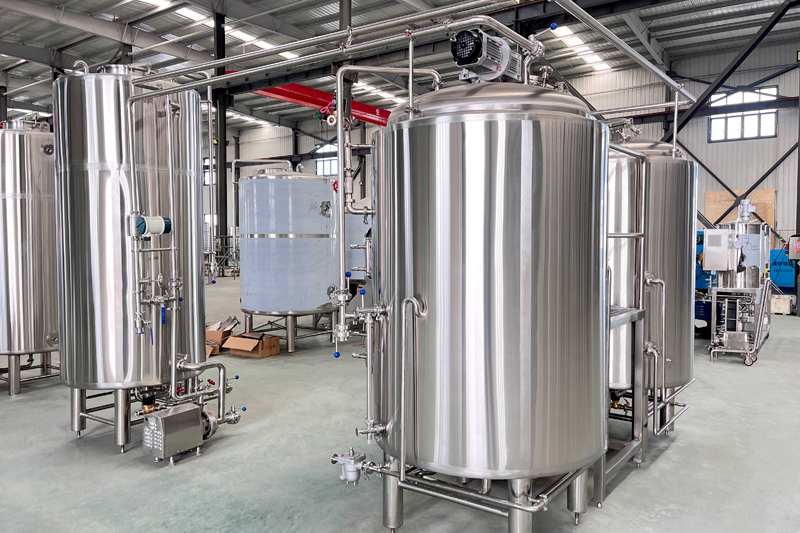

1000L Hot water tank
-
4㎡ double plate heat exchanger + 3㎡ single tube heat exchanger
-
5m³/h pumps
-
Hops inline filter
-
Oxygenate device
-
Skid-mounted work platform
-

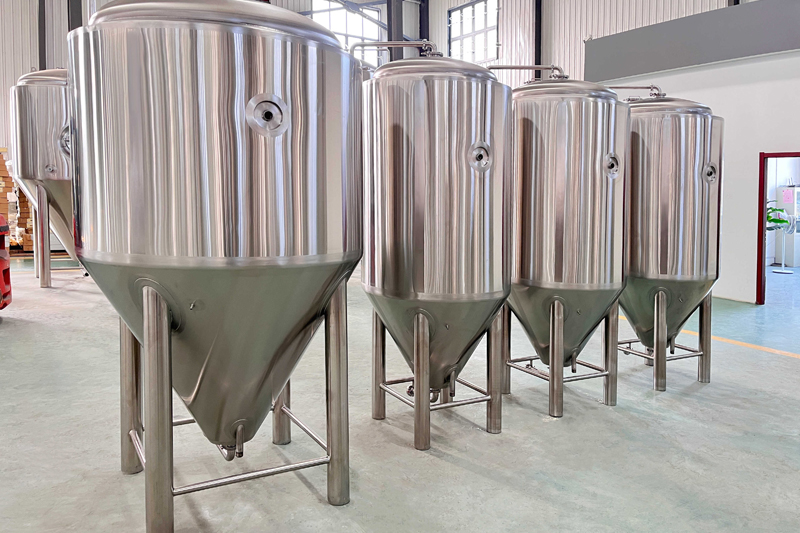

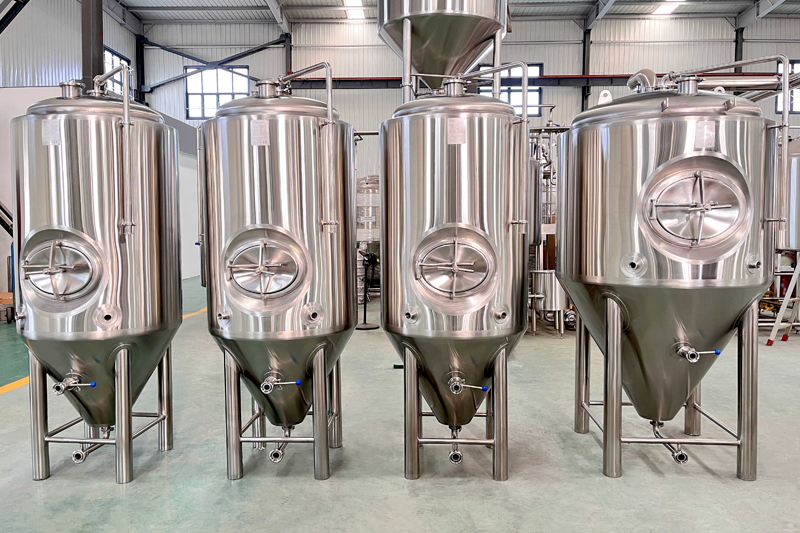

3*500L Fermentation tank
-
1*1000L Fermentation tank
-
1000L Glycol water tank
-
5HP Chiller
-
PID control cabinet
Get A Turnkey Solution For Craft Breweries
If you are ready to open a craft brewery, you can contact us. Micet Craft’s engineers will provide you with a list of craft brewery equipment and related prices. Of course, we can also provide you with professional turnkey brewery solutions, allowing you more time to focus on brewing delicious beer. Micet Craft very much hope to cooperate with you, my friend! Mail: [email protected]
