This page is for breweries, brewpubs and beverage producers looking for a used 5000L fermentation tank with full documentation and a clear refurbishment process. Based on MICET’s standard 5000L conical fermenter, this used 5000L fermenter combines SUS304 stainless-steel construction, jacketed cooling, 80 mm PU insulation and CIP-ready internals. It is a practical choice if you want a used 5000L conical fermenter or second-hand 5000L unitank instead of investing in new equipment.
MICET-designed used 5000L fermentation tank in SUS304 stainless steel, 60 degree conical bottom, 3.0 mm inner shell, 80 mm PU insulation and glycol jackets. A fully featured used 5000L conical fermenter for breweries that want reliable second-hand equipment instead of a basic storage tank.
Refurbished 5000L fermentation tank equipment built on an industrial MICET design, adapted to your real brewery cellar layout.
The used 5000L fermentation tank comes from MICET’s 5000L conical fermenter design, with professional geometry, cooling jackets, and fittings proven in commercial breweries.

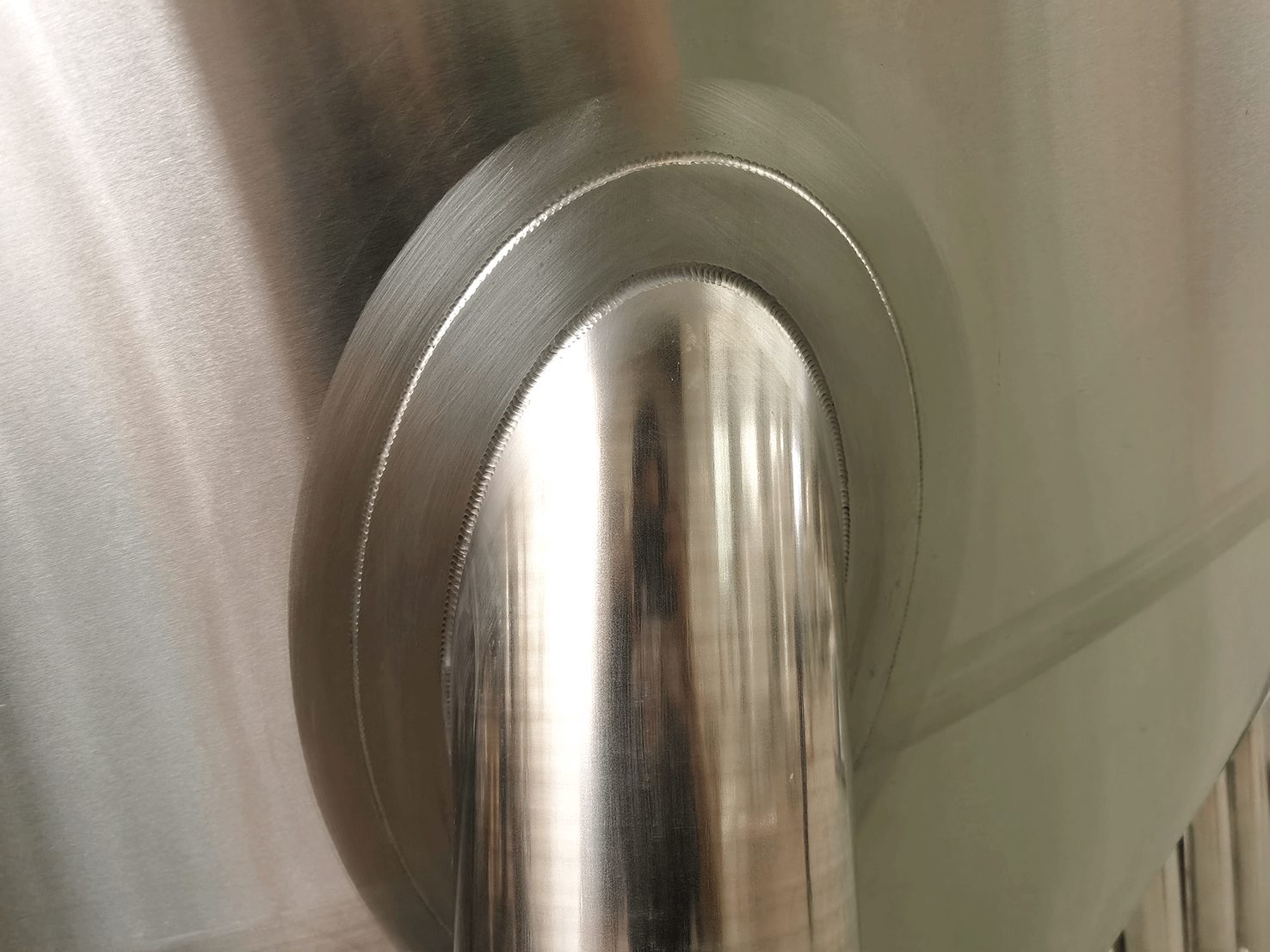

Inner shell 3.0 mm SUS304, outer shell 2.0 mm SUS304, 60° cone, all TIG-welded and polished – a durable used stainless-steel beer fermenter.
Approx. 80 mm PU insulation around shell and cone helps keep the 5000L fermentation temperature stable and cuts energy consumption in the cellar.
Etched glycol jackets on both cylinder and cone provide efficient cooling for the used 5000L fermenter during fermentation and cold conditioning.

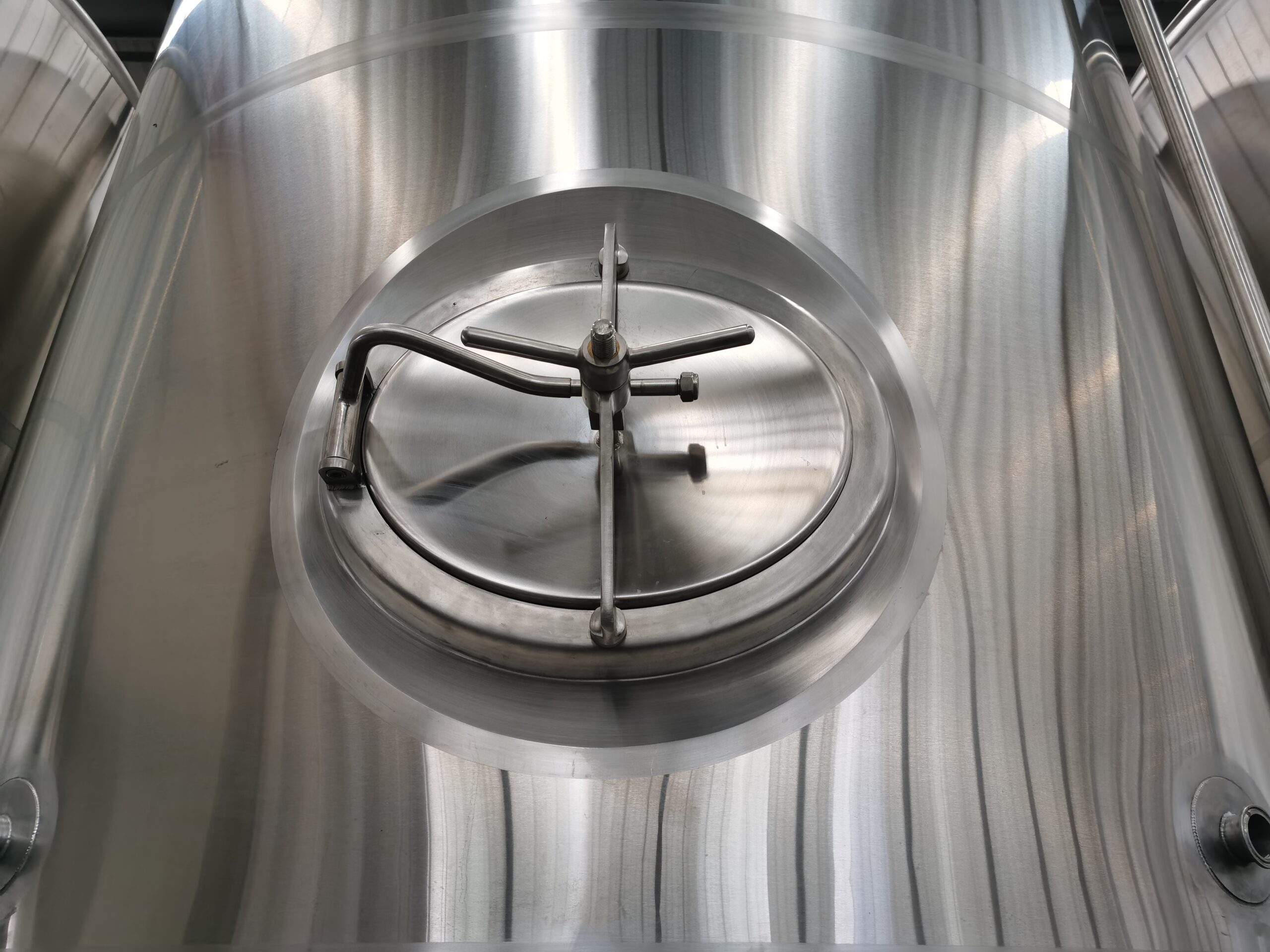

Internal surface polished to Ra ≤ 0.4 μm, 360° CIP spray ball, shadowless manway and hygienic fittings make this used 5000L conical fermenter easy to clean and sanitize.
Design pressure 0.4 MPa, working pressure around 0.2 MPa, with PRV and safety valves – suitable as a used 5000L unitank for fermentation, maturation and carbonation.
Every used 5000L fermentation tank follows a clear refurbishment and quality-control process before it is shipped to your brewery.
Check shell, cone, welds and jackets of the used 5000L fermenter, then perform pressure and leak tests.
Deep cleaning, scale removal and passivation where required to restore a hygienic internal surface.
Inspect PRV, sampling valve, racking arm, gaskets and key accessories; replace worn parts as needed.
Provide basic test records and photos so you can review the real condition of the used 5000L tank.
Bu used 5000L fermentation tank is supplied with a complete set of hygienic fittings so you can put it into service quickly.
Adjustable PRV (approx. 0.1–0.25 MPa), pressure gauge around 0–0.6 MPa for safe tank operation.
Sanitary sampling valve (DN20) and 360° rotating racking arm for clear beer draw-off.
Carbonation stone and dry-hopping port can be included to use the tank as a 5000L unitank.
PT100 temperature probe with transmitter for precise temperature monitoring and control integration.
Key technical data for the MICET 5000L design, applied to this used 5000L fermentation tank. Values are indicative and may slightly vary with different batches of second-hand tanks.
| Parametre | Kullanılmış 5000L Fermantasyon Tankı |
|---|---|
| Tip | Used 5000L conical fermenter / used 5T unitank |
| Etkin Hacim | Approx. 5000 L |
| Uygulama | Beer, cider, kombucha and similar beverages |
| İç / Dış Malzeme | SUS304 / SUS316 |
| İç Kabuk Kalınlığı | 3.0 mm |
| Dış Kabuk Kalınlığı | 2.0 mm |
| Cone Angle | 60° conical bottom |
| Isolasyon | PU foam, approx. 80 mm thickness |
| Cooling Media | Glycol Water or Alcoholwater |
| Tasarım / Çalışma Basıncı | Design pressure ~0.4 MPa / working pressure ~0.2 MPa |
| İç Yüzey Finish | Polished to Ra ≤ 0.4 μm, CIP-ready |
| CIP Temizliği | 360° Saturation Coverage CIP Spraying Ball for Temizlik |
| Temperature Sensor | PT100 temperature probe + transmitter |
| Kapak | Shadowless manway on shell or top (SUS304) |
| Tank Ayakları | 4 × SUS304 legs with adjustable leveling feet |
Share your brewhouse size, yearly volume and cellar layout. We will prepare a detailed offer for our used 5000L fermentation tank, including refurbishment scope, accessories, cooling integration options and delivery plan.
