1000L Beverage Production Equipment
The 1000L beverage production equipment is designed for small and medium beverage plants that need a hygienic, flexible line for carbonated drinks, fruit juice, tea, flavored water, and functional beverages. The system can combine water treatment, mixing, optional carbonation, sterilization or pasteurization, CIP cleaning, and filling support according to the product process.
Micet configures each 1000L system around the buyer’s recipe, target output, utilities, packaging format, and automation level, so the line can be used as a compact production cell or integrated into a larger turnkey beverage project.
Applications for 1000L Beverage Production
This 1000L beverage equipment is suitable for producers planning pilot production, regional distribution, or flexible multi-SKU beverage manufacturing. Typical applications include carbonated soft drinks, juice drinks, tea beverages, flavored water, functional beverages, and other non-alcoholic liquid products that require sanitary mixing and stable batch control.
Core Equipment Modules

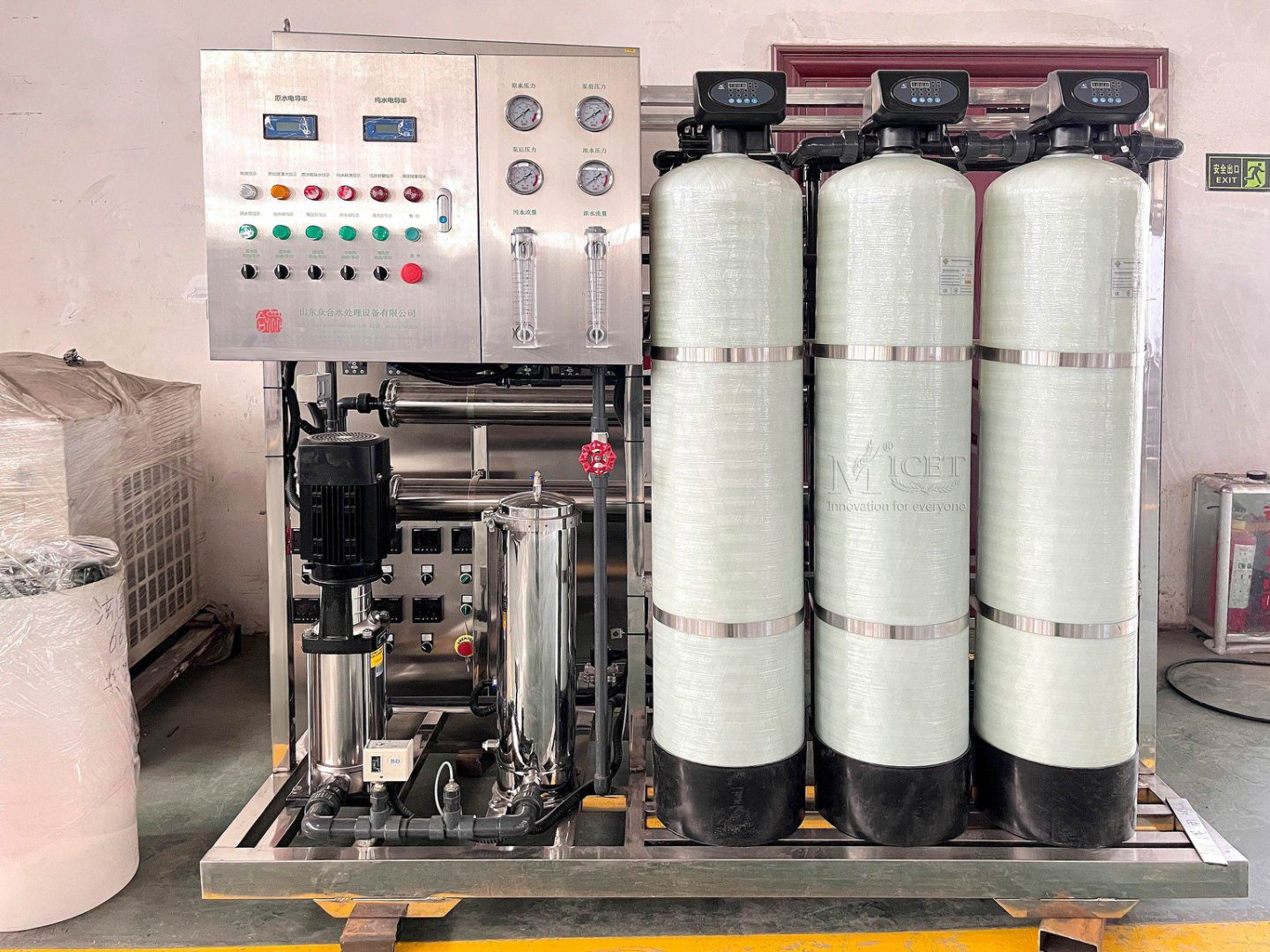

A complete configuration can include a raw water tank, sediment filtration, activated carbon filtration, water softening, RO processing, pure water storage, a stainless steel mixing tank, CO2 mixing equipment, sanitary pumps, control cabinet, CIP spray balls, and optional filling or packaging connection. The final scope should be matched to the product type and plant layout.
Buyer Checklist Before Quotation
- Confirm the target beverage type, recipe viscosity, and carbonation requirement.
- Confirm whether the process needs sterilization, pasteurization, filtration, or hot filling.
- Confirm daily output, batch size, utilities, available floor area, and drainage conditions.
- Confirm packaging format, such as bottles, cans, pouches, or bulk transfer to storage tanks.
- Confirm whether the project needs layout design, installation guidance, commissioning, or operator training.
Related solutions: beverage equipment, CIP system, instant sterilizer, and packaging equipment.
Advantages of 1000L Beverage Production Equipment
1000L beverage production equipment built on an industrial MICET design, adapted to real beverage recipes, plant utilities, and packaging requirements.
Optimized for Small & Medium Beverage Production
The 1000L Beverage Equipment is designed for efficient and consistent production of carbonated drinks, juice, and flavored beverages. With an integrated structure including water treatment, mixing, and CO₂ carbonation, it ensures stable performance and hygienic operation, making it ideal for startups, pilot plants, and growing beverage producers.
Reliable Quality & Stable Performance
Each system is manufactured with high-quality stainless steel and undergoes strict inspection and testing before delivery. Key components such as the water treatment unit, mixing tank, and CO₂ mixer are carefully configured to ensure reliable operation, precise control, and long service life, supporting consistent beverage quality in every batch.
Flexible Configuration & Easy Expansion
1000L Beverage Equipment Technical Parameters
The 1000L beverage equipment uses an integrated design that can combine water treatment, hygienic mixing, optional CO2 carbonation, CIP cleaning, and downstream filling support for stable, repeatable beverage production.
| Equipment | Technical Parameters |
|---|---|
| Sediment Filter | Fiberglass (FRP); 1000 L/h; 750 x 2200 mm; food-grade pre-filtration; automatic control valves |
| Activated Carbon Filter | Fiberglass (FRP); 1000 L/h; 750 x 2200 mm; removes odor and chlorine; automatic valves |
| Water Softener | Fiberglass (FRP); 1000 L/h; automatic resin regeneration; 400 x 1100 mm salt tank; automatic valves |
| Precision Membrane Filter | High-quality membrane filtration; stainless steel frame; removes fine impurities |
| RO Processor | Rejection rate at least 97%; recovery rate at least 65%; capacity matched to 1000L production |
| High-Pressure Pump | 1-2 m3/h; 0.75-1.1 kW; stainless steel SUS304 |
| Controller | Stainless steel control cabinet; optional PLC automatic operation |
| Ozone Sterilizer | 10-20 g/h; 10-18 mg/L; configured according to system capacity |
| Raw Water Tank | 1000 L; single wall; 3 mm thickness; level indicator and CIP spray ball |
| Pure Water Tank | 1000 L; single wall; 3 mm thickness; level indicator and CIP spray ball |
| Raw Water Pump | 1-2 m3/h; 0.75-1.1 kW; stainless steel SUS316 |
| Pure Water Pump | 1-2 m3/h; 0.75-1.1 kW; stainless steel SUS316 |

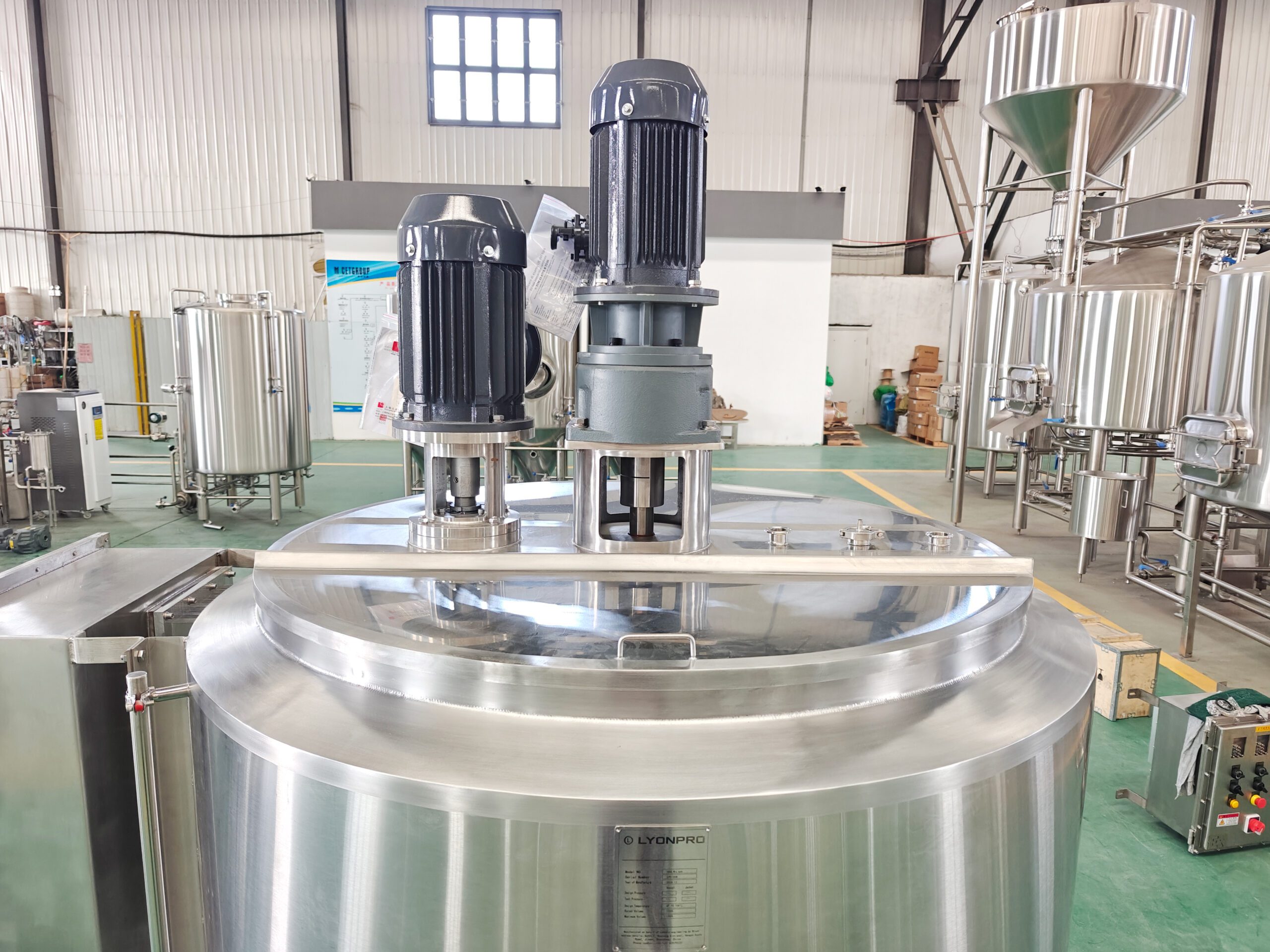

| Mixing Tank | 1000 L working volume; SUS304; 2.0/3.0 mm thickness; 0.3 MPa design pressure; 1.1-2.2 kW agitator; PT100; CIP; mirror polishing no more than 0.4 micrometers |

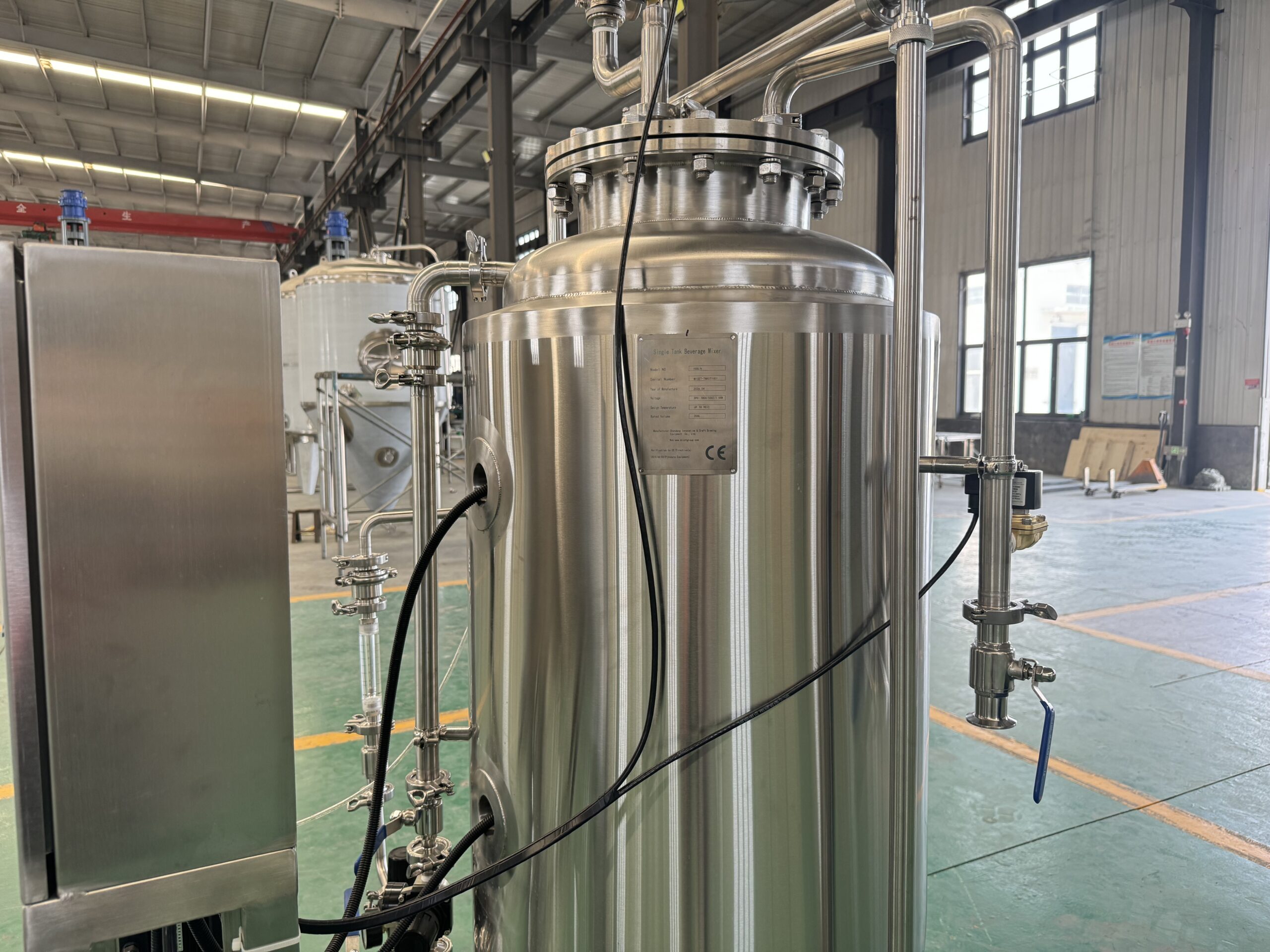

| CO2 Mixing Machine | SUS304; 1000 L/h; 200-300 L tank; 1-2 T/h pumps; plate heat exchanger; about 1.5-2.2 kW; PLC control; sanitary valves |
Manufacturing Process for 1000L Beverage Equipment
To prepare the 1000L beverage equipment for a new project, Micet follows a structured manufacturing and quality-control process from engineering confirmation to final packing.
Design & Planning
Design the 1000L beverage equipment around the customer’s beverage type, production capacity, carbonation needs, utilities, and plant layout.
Precision Manufacturing
Manufacture key stainless steel components with sanitary processing methods to support durability, hygiene, and stable system performance.
Assembly & Integration
Assemble and integrate the water treatment system, mixing tank, CO2 mixing machine, pumps, controls, and sanitary pipelines for smooth production flow.
Performance Testing
Test water quality, mixing efficiency, carbonation accuracy, pump operation, controls, and overall system stability before delivery.
Quality Inspection & Packing
Complete final inspection, protect key components, and package the equipment for safe transport and ready installation at the buyer’s site.
1000L Beverage Equipment Details
Request a Quote for 1000L Beverage Equipment
Share your target output, beverage type, carbonation requirement, packaging format, and factory layout. Micet will prepare a detailed quotation for a 1000L beverage equipment configuration, including equipment scope, delivery time, and shipping method.
The system can include water treatment, a 1000L stainless steel mixing tank, CO2 mixing, CIP cleaning, controls, and filling-line connection. Engineering support is available for layout planning, installation guidance, commissioning, and operator training.
